WATER ICE AT THE SURFACE OF THE HD 100546 DISK

Authors: M. Honda, T. Kudo, S. Takatsuki, A. K. Inoue, T. Nakamoto, M. Fukagawa, M. Tamura, H. Terada, and N. Takato

2016 The Astrophysical Journal 821 2.

Provider: AAS Journals

Caption: Figure 2.

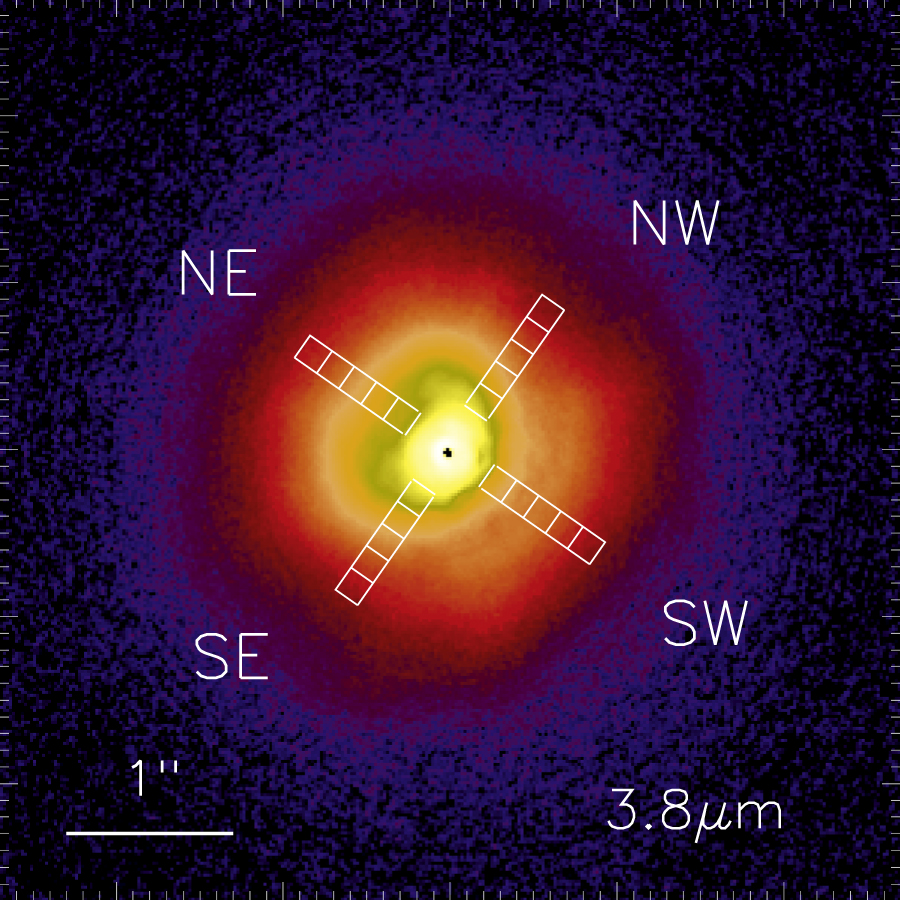

Positions of the spectra-extracted region shown in the L′ image of HD 100546 disk. 0.″162 square regions were set along the major (SE-NW) and minor (SW-NE) axes of the disk at positions of 0.″360, 0.″522, 0.″684, 0.″846, and 1.″008 from the central star.
