WATER ICE AT THE SURFACE OF THE HD 100546 DISK

Authors: M. Honda, T. Kudo, S. Takatsuki, A. K. Inoue, T. Nakamoto, M. Fukagawa, M. Tamura, H. Terada, and N. Takato

2016 The Astrophysical Journal 821 2.

Provider: AAS Journals

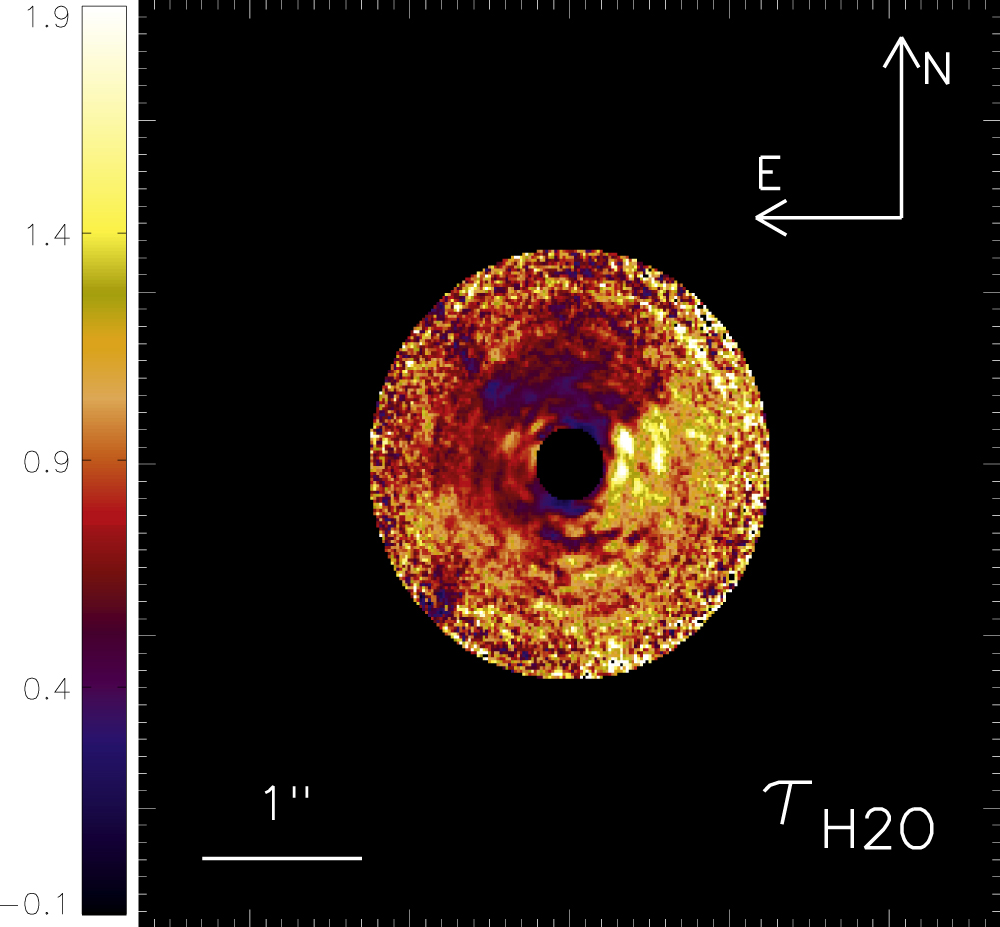

Caption: Figure 4.

﹩{\tau }_{{\rm{H}}2{\rm{O}}}﹩ map derived from our data. Since the inner region (r < 0.″22)suffered from saturation and the outer region (r > 1.″26) has a low signal-to-noise ratio, these regions are masked.
