A JWST Transiting Survey of FGK Stellar Limb Darkening: Empirical Evidence for Quadratic Laws and Atmospheric Model Comparisons

  • Authors: David K. Sing, Joshua D. Lothringer, Jeff A. Valenti, Natalie H. Allen, Katherine A. Bennett, Carlos Gascón, Mei Ting Mak, Patrick McCreery, Sagnick Mukherjee, Lakeisha M. Ramos Rosado, Stephen P. Schmidt, Kevin B. Stevenson, Daniel P. Thorngren, Le-Chris Wang

David K. Sing et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

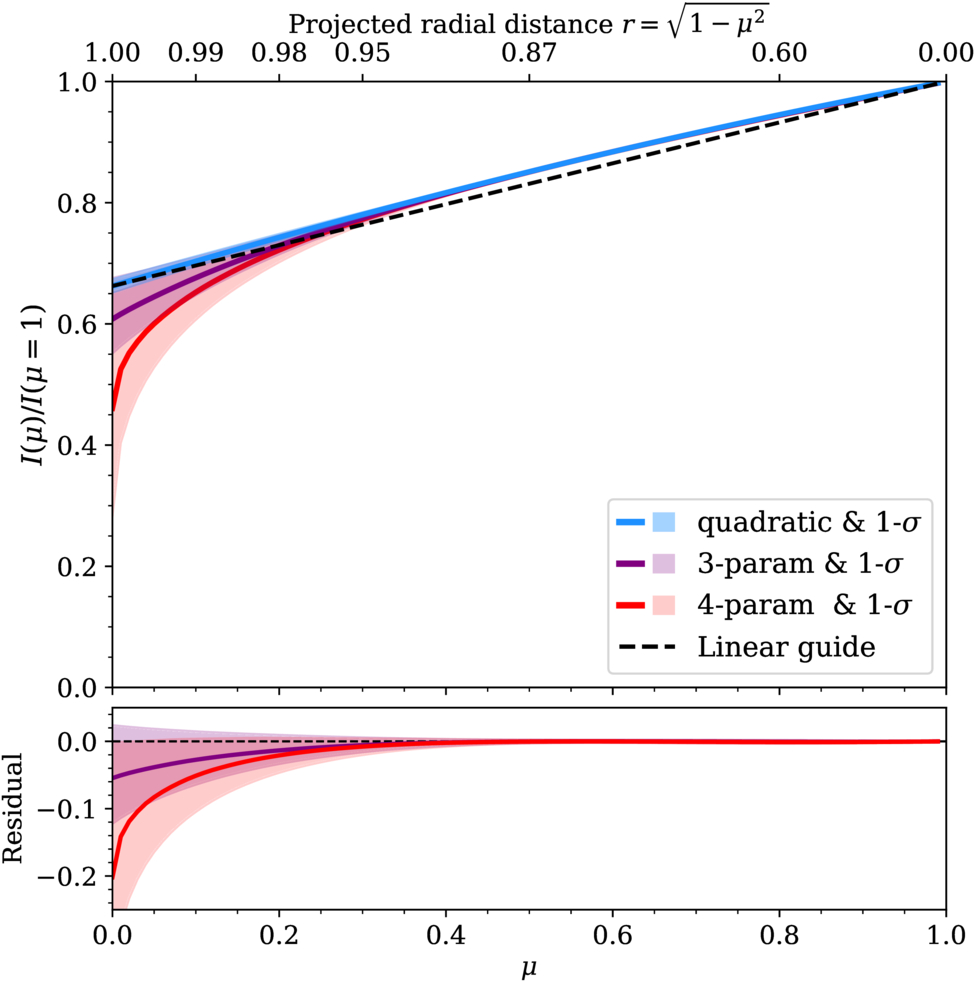

Caption: Figure 2.

Posterior intensity profiles I(μ)/I(μ = 1) from the JWST NIRSpec/Prism white-light-curve fit of WASP-6. The quadratic (blue), three-parameter (purple), and four-parameter (red) limb-darkening laws are shown with their 1σ posterior envelopes. A linear guide (dashed black) connects the disk center to the best-fit limb intensity. Bottom: residuals of the three-parameter and four-parameter intensity compared to the best-fit quadratic law. The parameterizations only differ substantially below μ ≲ 0.2, which represents only about 4% of the stellar disk area.
