GEMS JWST: Hold on to Your HATS(-6 b), a Subsolar-metallicity Giant Planet with Water, Methane, and Ammonia in its Atmosphere

  • Authors: Giannina Guzmán Caloca, Caleb I. Cañas, Nicole L. Wallack, Erin M. May, Shang-Min Tsai, Simon Müller, Ravit Helled, Shubham Kanodia, Jacob Lustig-Yaeger, Knicole D. Colón, Ian Czekala, Megan Delamer, Peter Gao, Te Han, Jessica Libby-Roberts, Suvrath Mahadevan, Anjali A. A. Piette, Guđmundur Stefánsson, Kevin B. Stevenson

Giannina Guzmán Caloca et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

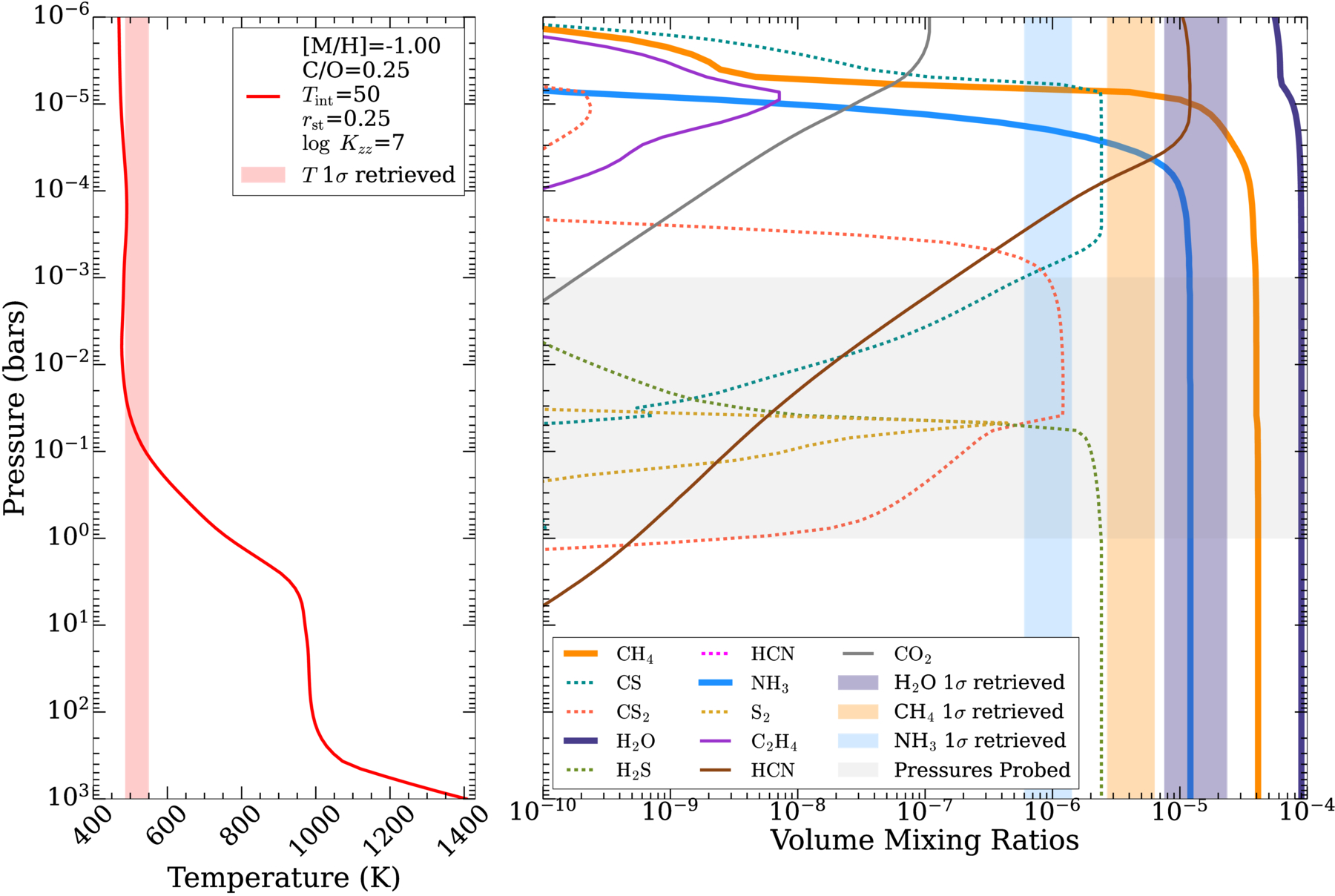

Caption: Figure 7.

Our best-fit VULCAN chemical profiles. We highlight the 1σ retrieved planetary temperature and abundances from our final retrieval model with POSEIDON (M2.5; see Table 6) for our best-constrained species (H2O, CH4, and NH3) and show the abundances for these species as solid lines. For ease of comparison against forward model expectations from VULCAN, we also highlight the abundance profiles of C2H4 and HCN as solid lines. These species were part of follow-up retrieval tests that yielded tentative volume mixing ratios (VMRs) of ﹩\mathrm{log}{{\rm{C}}}_{2}{{\rm{H}}}_{4}=-6.2{0}_{-2.09}^{+0.49}﹩ and ﹩\mathrm{log}{\rm{HCN}}=-5.7{1}_{-0.39}^{+0.34}﹩ (see Section 6.2).
