An Earthlike Density for the Temperate Earth-sized Planet GJ 12 b

  • Authors: Madison Brady, Jacob L. Bean, Ritvik Basant, Nina Brown, Tanya Das, Matthew C. Nixon, Rafael Luque, Caroline Piaulet-Ghorayeb, Michael Radica, Andreas Seifahrt, Julian Stürmer, Lily Zhao

Madison Brady et al 2025 The Astronomical Journal 170 .

  • Provider: AAS Journals

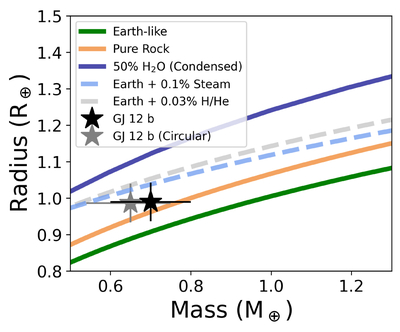

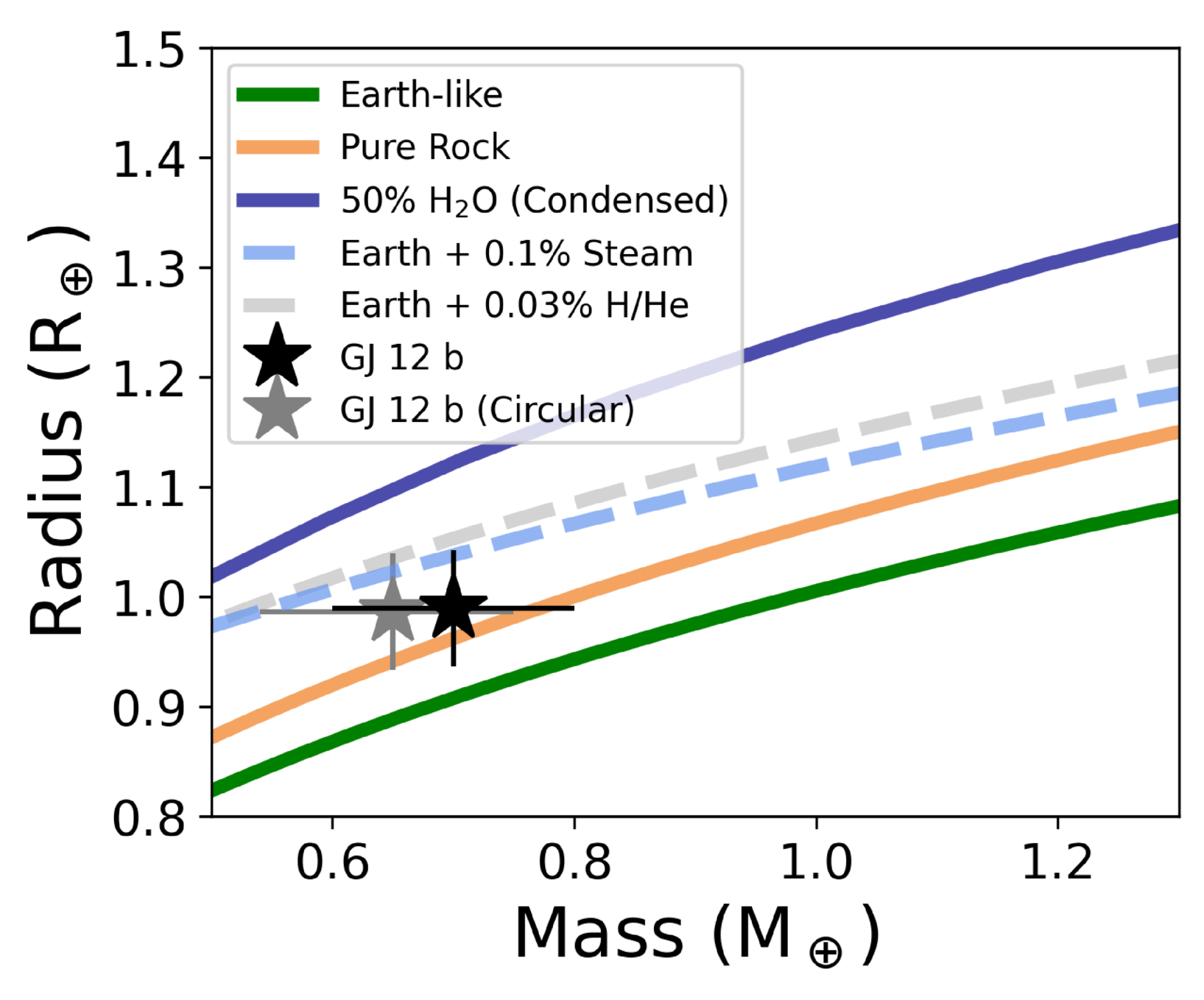

Caption: Figure 10.

The mass and radius of our two models for GJ 12 b (circular and eccentric orbits) compared to various composition models from L. Zeng et al. (2019), as well as a steam atmosphere model from M. Turbet et al. (2020) and an H/He atmospheric model from M. C. Nixon & N. Madhusudhan (2021) and M. C. Nixon et al. (2024). The star corresponding to the eccentric-orbit model has been shifted slightly upward so that the errors of the two points are distinguishable. We note that the 50% water model, which is from L. Zeng et al. (2019), assumes a planet temperature of 300 K, which is very close to the actual equilibrium temperature of this planet.
