EMU Detection of a Large and Low Surface Brightness Galactic SNR G288.8–6.3

  • Authors: Miroslav D. Filipović, Shi Dai, Bojan Arbutina, Natasha Hurley-Walker, Robert Brose, Werner Becker, Hidetoshi Sano, Dejan Urošević, T. H. Jarrett, Andrew M. Hopkins, Rami Z. E. Alsaberi, R. Alsulami, Cristobal Bordiu, Brianna Ball, Filomena Bufano, Christopher Burger-Scheidlin, Evan Crawford, Jayanne English, Frank Haberl, Adriano Ingallinera, Anna D. Kapinska, Patrick J. Kavanagh, Bärbel S. Koribalski, Roland Kothes, Sanja Lazarević, Jonathan Mackey, Gavin Rowell, Denis Leahy, Sara Loru, Peter J. Macgregor, Luciano Nicastro, Ray P. Norris, Simone Riggi, Manami Sasaki, Milorad Stupar, Corrado Trigilio, Grazia Umana, Tessa Vernstrom, Branislav Vukotić

Miroslav D. Filipović et al 2023 The Astronomical Journal 166 .

  • Provider: AAS Journals

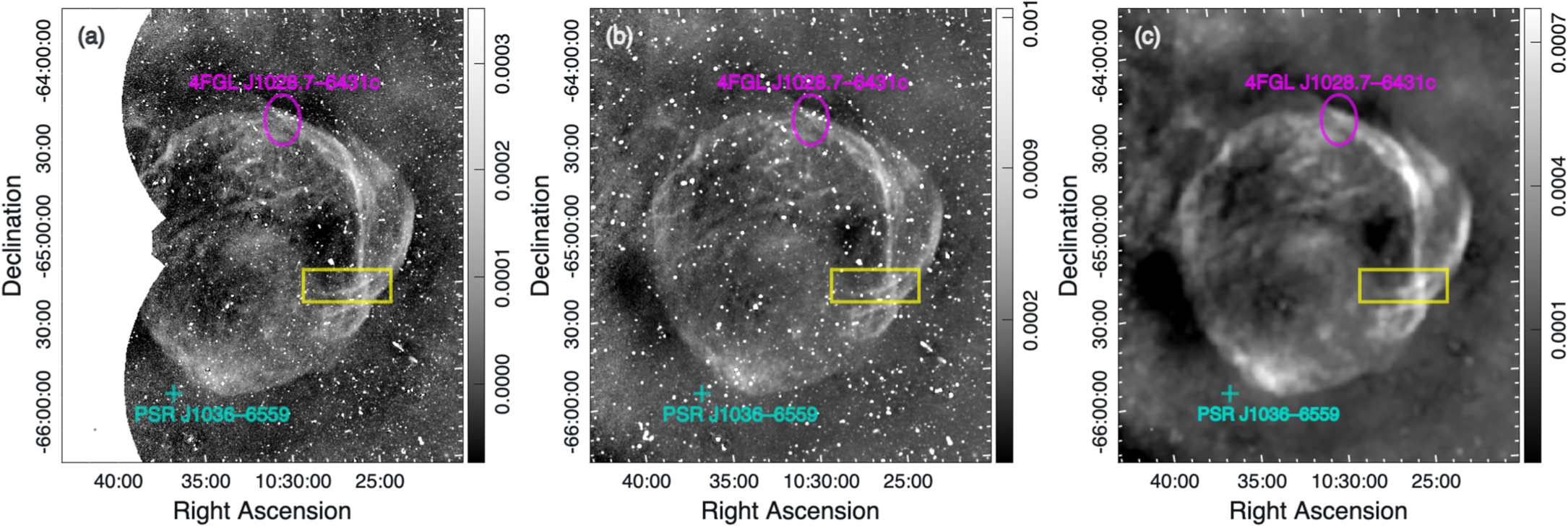

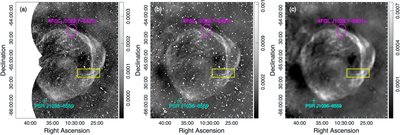

Caption: Figure 1.

ASKAP image of the Galactic SNR G288.8–6.3 at 943 MHz. (a) The publicly released image with a synthesized beam of 15″ × 15″. (b) An extended and reprocessed image that is convolved to the resolution of 30″ × 30″. (c) To enhance the diffuse emission, we show panel (b) scaled with a 90″ box using the multiresolution filtering method of Rudnick (2002). The magenta ellipse marks the position of gamma-ray source 4FGL J1028.7–6431c (68% containment), while the cyan plus sign marks the position of nearby radio pulsar J1036–6559. The yellow rectangular box marks the area covered in Figure 5. The grayscale (in Jy beam−1) is displayed on the right side, with panels (a) and (b) using a logarithmic scale and panel (c) using a linear scale.
