The TESS-Keck Survey. XVI. Mass Measurements for 12 Planets in Eight Systems

  • Authors: Joseph M. Akana Murphy, Natalie M. Batalha, Nicholas Scarsdale, Howard Isaacson, David R. Ciardi, Erica J. Gonzales, Steven Giacalone, Joseph D. Twicken, Anne Dattilo, Tara Fetherolf, Ryan A. Rubenzahl, Ian J. M. Crossfield, Courtney D. Dressing, Benjamin Fulton, Andrew W. Howard, Daniel Huber, Stephen R. Kane, Erik A. Petigura, Paul Robertson, Arpita Roy, Lauren M. Weiss, Corey Beard, Ashley Chontos, Fei Dai, Malena Rice, Judah Van Zandt, Jack Lubin, Sarah Blunt, Alex S. Polanski, Aida Behmard, Paul A. Dalba, Michelle L. Hill, Lee J. Rosenthal, Casey L. Brinkman, Andrew W. Mayo, Emma V. Turtelboom, Isabel Angelo, Teo Močnik, Mason G. MacDougall, Daria Pidhorodetska, Dakotah Tyler, Molly R. Kosiarek, Rae Holcomb, Emma M. Louden, Lea A. Hirsch, Emily A. Gilbert, Jay Anderson, Jeff A. Valenti

Joseph M. Akana Murphy et al 2023 The Astronomical Journal 166 .

  • Provider: AAS Journals

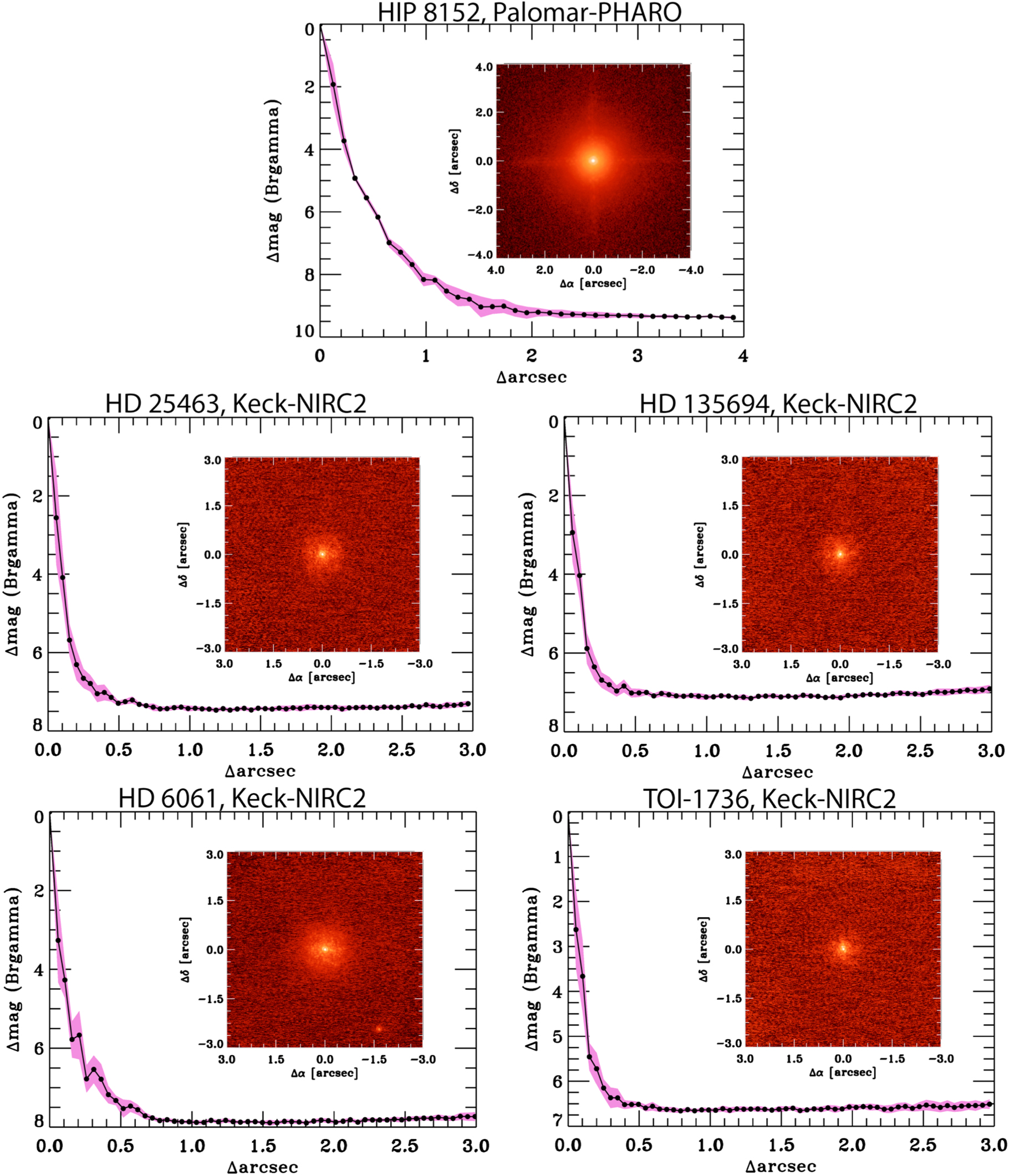

Caption: Figure 1.

AO imaging results for HIP 8152, HD 25463, HD 135694, HD 6061, and TOI-1736 from our observations with Palomar-PHARO and Keck-NIRC2. Contrast curves are shown in black with 1σ error envelopes in purple. The images themselves are shown as the postage stamp insets. HIP 8152, HD 25463, HD 135694, and TOI-1736 all appear single. Keck-NIRC2 observations of HD 6061 were taken in both Br-γ and J-cont, but only the former is shown here. In the image of HD 6061, TIC 600433892 can be seen in the lower-right corner at a separation of ≈3″. TIC 600433892 is fainter than HD 6061 by 6.2 mag in the TESS bandpass, meaning that its dilution of HD 6061 b’s transits is about a 0.1% effect (i.e., much less than the uncertainty on the stellar radius). HD 6061 and TIC 600433892 have consistent distances and proper motions according to Gaia DR3, meaning that the two stars are almost certainly gravitationally bound. At a distance of 67 pc, their on-sky separation of 3″ translates to a sky-projected separation of about 200 au.
