Figure 3 from The Solar Probe ANalyzers—Electrons on the Parker Solar Probe

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Solar Probe ANalyzers—Electrons on the Parker Solar Probe

Authors: Phyllis L. Whittlesey, Davin E. Larson, Justin C. Kasper, Jasper Halekas, Mamuda Abatcha, Robert Abiad, M. Berthomier, A.W. Case, Jianxin Chen, David W. Curtis, Gregory Dalton, Kristopher G. Klein, Kelly E. Korreck, Roberto Livi, Michael Ludlam, Mario Marckwordt, Ali Rahmati, Miles Robinson, Amanda Slagle, M.L. Stevens, Chris Tiu, and J.L. Verniero

2020 The Astrophysical Journal Supplement Series 246 74.

Provider: AAS Journals

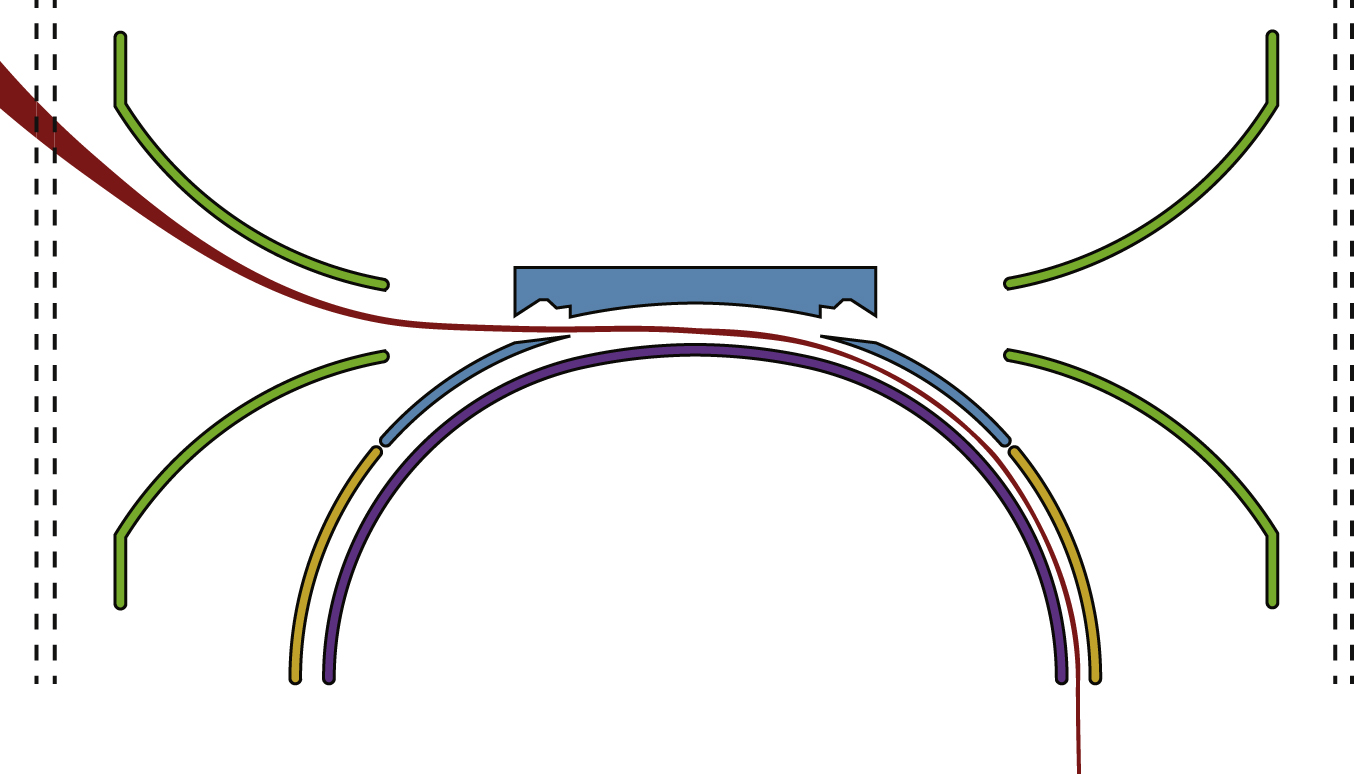

Caption: Figure 3.

Graphical cross section of the SPAN-E optics design. The green lines represent the curves of the deflectors, blue represents the top cap and upper outer hemisphere, yellow shows the spoiler section, and purple shows the inner hemisphere. The red curve is a representative travel path for electrons eligible to pass through the analyzer when the hemisphere (purple) is biased, the upper deflector is biased, the lower deflector is at ground, and both the spoiler and upper outer hemisphere (blue and orange) are also held at ground.
