MODULES FOR EXPERIMENTS IN STELLAR ASTROPHYSICS (MESA): BINARIES, PULSATIONS, AND EXPLOSIONS

  • Authors: Bill Paxton, Pablo Marchant, Josiah Schwab, Evan B. Bauer, Lars Bildsten, Matteo Cantiello, Luc Dessart, R. Farmer, H. Hu, N. Langer, R. H. D. Townsend, Dean M. Townsley, and F. X. Timmes

2015 The Astrophysical Journal Supplement Series 220 15.

  • Provider: AAS Journals

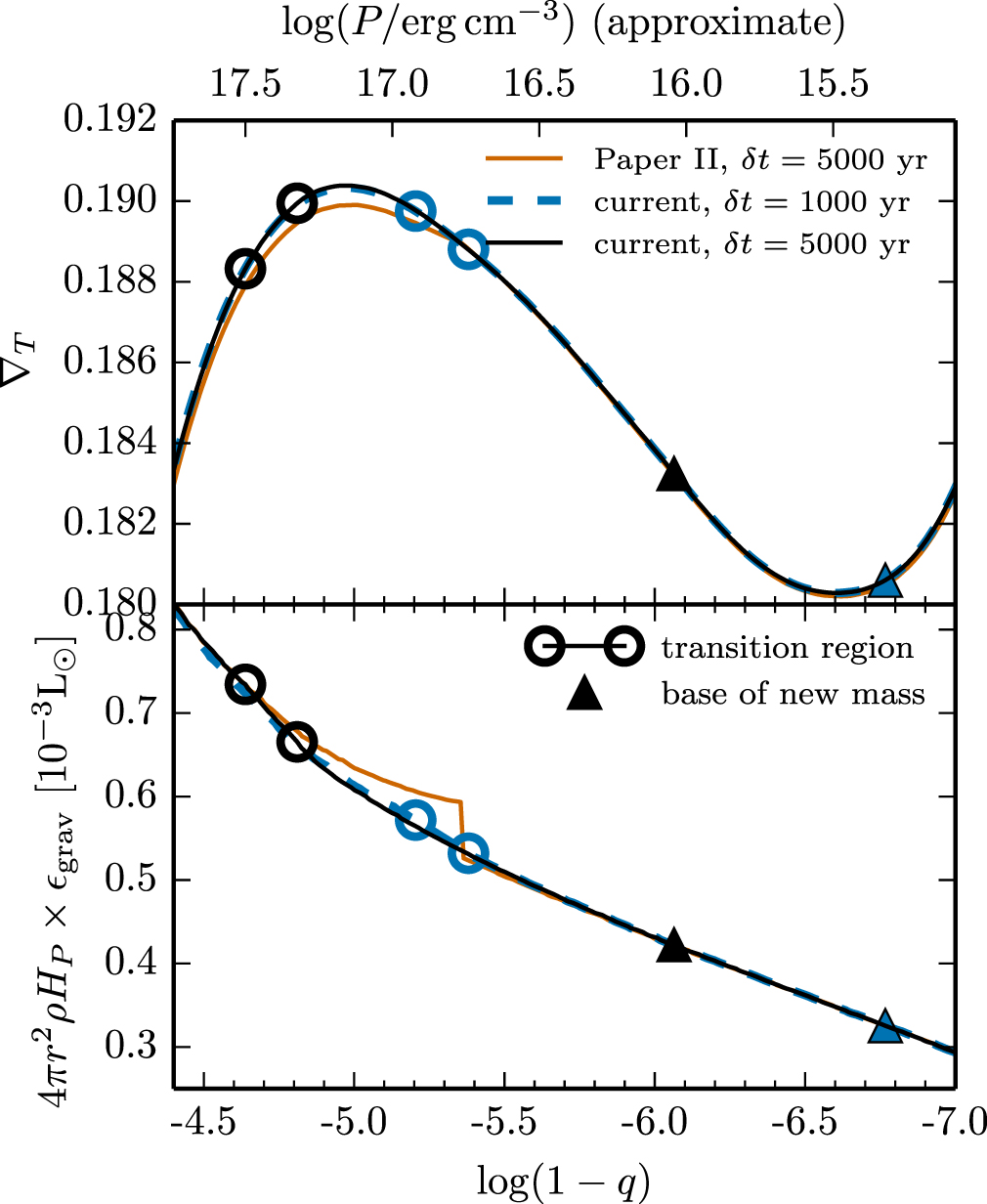

Caption: Figure 33.

Profiles spanning the Lagrangian-homologous grid transition region in a ﹩0.6{M}_{\odot }﹩ WD with a core temperature of 107 K undergoing accretion of solar composition material at a rate of ﹩{10}^{-10}{M}_{\odot }﹩ yr−1. At the time shown ﹩{M}_{\mathrm{acc}}/{M}_{\mathrm{ign}}=0.2﹩. Shown for comparison are the results of the treatment discussed here for a 5000 years timestep and a 1000 years timestep and the treatment discussed in Paper II. For the current treatment the transition from homologous to Lagrangian is indicated by two open circles at either end of the region. The location ﹩\delta M﹩ in from the surface, the base of material newly accreted this step, is indicated by the triangle.
