MODULES FOR EXPERIMENTS IN STELLAR ASTROPHYSICS (MESA): BINARIES, PULSATIONS, AND EXPLOSIONS

  • Authors: Bill Paxton, Pablo Marchant, Josiah Schwab, Evan B. Bauer, Lars Bildsten, Matteo Cantiello, Luc Dessart, R. Farmer, H. Hu, N. Langer, R. H. D. Townsend, Dean M. Townsley, and F. X. Timmes

2015 The Astrophysical Journal Supplement Series 220 15.

  • Provider: AAS Journals

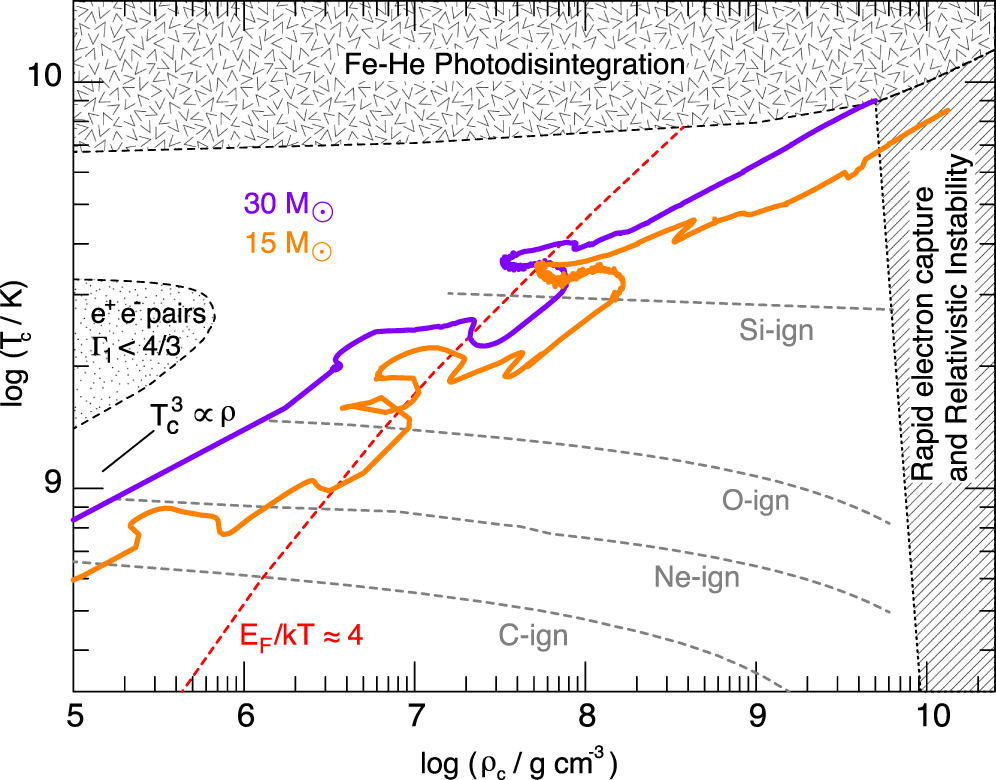

Caption: Figure 24.

Evolution of ﹩{T}_{{\rm{c}}}﹩ and ﹩{\rho }_{{\rm{c}}}﹩ in solar metallicity, non-rotating Mi = 15 and 30 ﹩{{\rm{M}}}_{\odot }﹩ pre-supernova models. The curves are calculated using an in situ 204 isotope reaction network. Locations of the core carbon, neon, oxygen, and silicon ignition are labeled, as is the scaling relation ﹩{T}_{{\rm{c}}}^{3}\propto {\rho }_{{\rm{c}}}﹩, and the ﹩{E}_{{\rm{F}}}/{k}_{{\rm{B}}}T\approx 4﹩ electron degeneracy curve. Regions dominated by electron–positron pairs, photodisintegration, and rapid electron capture are shaded and labeled.
