Figure 4 from A New Mechanism for Maunder-like Solar Minima: Phase Synchronization Dynamics in a Simple Nonlinear Oscillator of Magnetohydrodynamic Rossby Waves

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

A New Mechanism for Maunder-like Solar Minima: Phase Synchronization Dynamics in a Simple Nonlinear Oscillator of Magnetohydrodynamic Rossby Waves

Authors: Breno Raphaldini, Everton Medeiros, Carlos F. M. Raupp, and Andre Seiji Teruya

2020 The Astrophysical Journal Letters 890 L13.

Provider: AAS Journals

Caption: Figure 4.

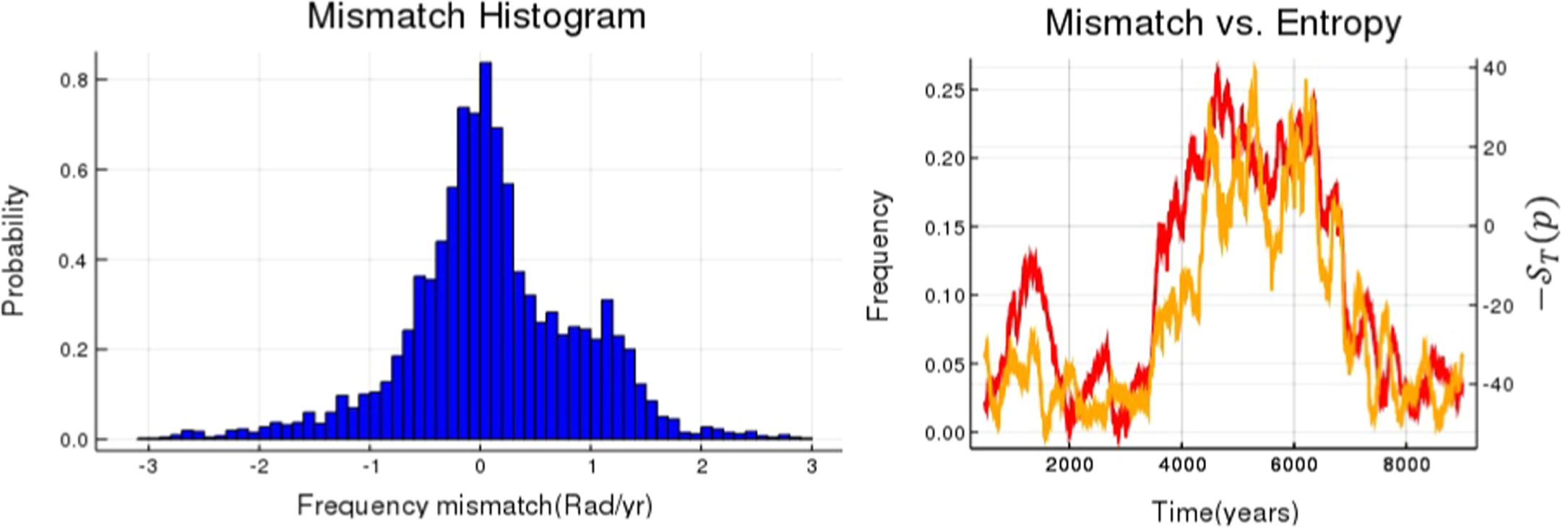

Histogram of the instantaneous frequency mismatch δω referred to the same numerical solution of Figure 1 (left panel). It is evident that the system has a bimodal character. The evolution of the Shannon Entropy of the system compared with the frequency mismatch curve (right panel).
