Figure 6 from The Bipolar Magnetic Emergence in the Solar Polar Region

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Bipolar Magnetic Emergence in the Solar Polar Region

Authors: Chunlan Jin, Guiping Zhou, Yuzong Zhang, and Jingxiu Wang

2020 The Astrophysical Journal Letters 889 L26.

Provider: AAS Journals

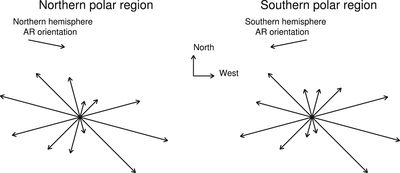

Caption: Figure 6.

Graphics of BMEs orientation distribution in the southern and northern polar regions. The length of an arrow is proportional to the number of BMEs that are oriented in that direction. The proper direction of AR in each hemisphere is also displayed.
