The Bipolar Magnetic Emergence in the Solar Polar Region

  • Authors: Chunlan Jin, Guiping Zhou, Yuzong Zhang, and Jingxiu Wang

2020 The Astrophysical Journal Letters 889 L26.

  • Provider: AAS Journals

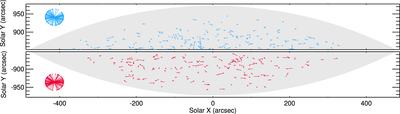

Caption: Figure 5.

Direction distribution of magnetic axis for these BMEs in the southern and northern polar regions. Each arrow starts from the magnetic barycenter of the positive polarity of the corresponding BME. The blue arrows in the top left corner and the red arrows in the bottom left mean the distributions of tilt direction for BMEs in a concentric circle in the corresponding polar region.
