Extinction and Dust Geometry in M83 H II Regions: An Hubble Space Telescope/WFC3 Study

Authors: Guilin Liu, Daniela Calzetti, Sungryong Hong, Bradley Whitmore, Rupali Chandar, Robert W. O'Connell, William P. Blair, Seth H. Cohen, Jay A. Frogel, and Hwihyun Kim

Liu et al. 2013 The Astrophysical Journal Letters 778 L41.

Provider: AAS Journals

Caption: Figure 2.

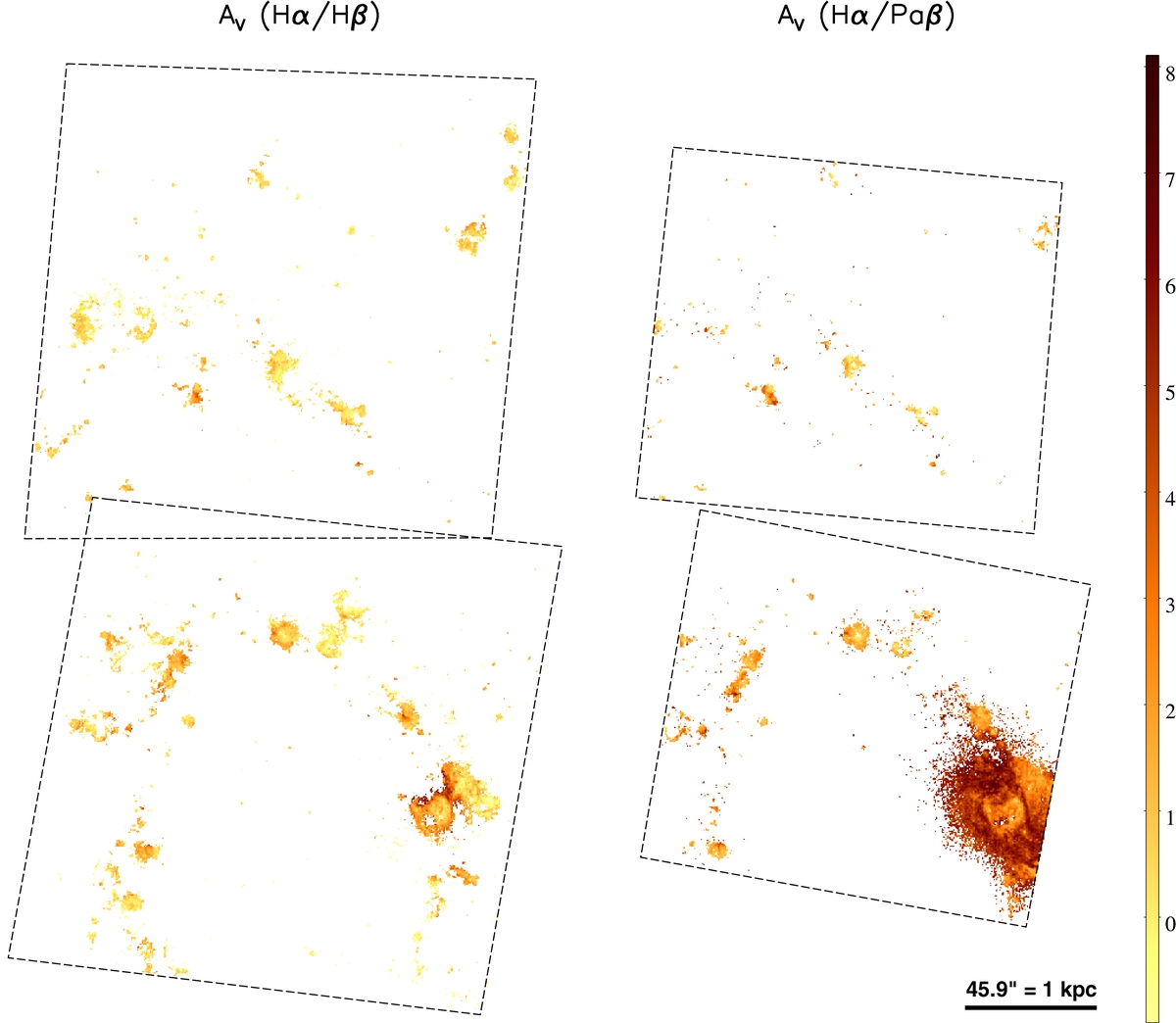

Visual extinction ( A _V ) maps in M83. These two A _V maps are derived from the Hα/Hβ (left) and Hα/Paβ (right) line ratios. The southern and northern pointings have been mosaiced, and the colorbar shows the value of A _V in magnitudes. The margins of the FoVs are depicted by the black dash lines for both the northern and the southern pointings.
