Dynamic Magnetography of Solar Flaring Loops

Authors: Gregory D. Fleishman, Gelu M. Nita, and Dale E. Gary

FLEISHMAN, NITA, & GARY 2009 The Astrophysical Journal 698 L183.

Provider: AAS Journals

Caption: Figure 1.

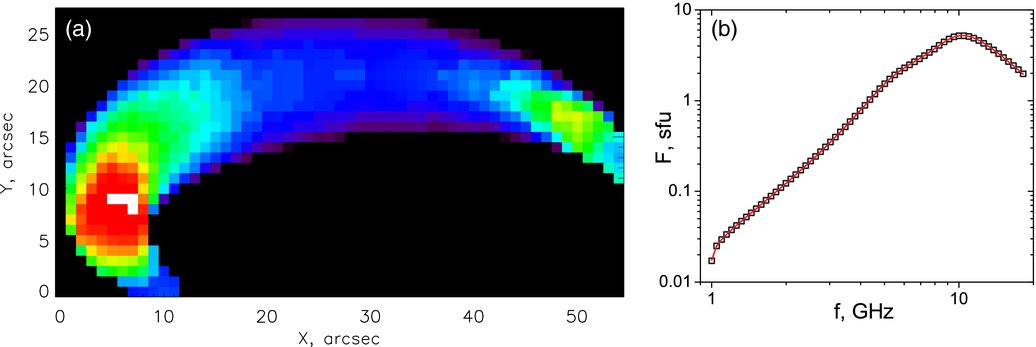

(a) Simulated image of the radio emitting loop source at 4 GHz as observed by an ideal heliograph with ~1'' pixel size resolution. (b) Example of the model (symbols) and fit (solid curve) spectra corresponding to one particular pixel of the image displayed in panel (a).

(An of this figure is available in the online journal.)
