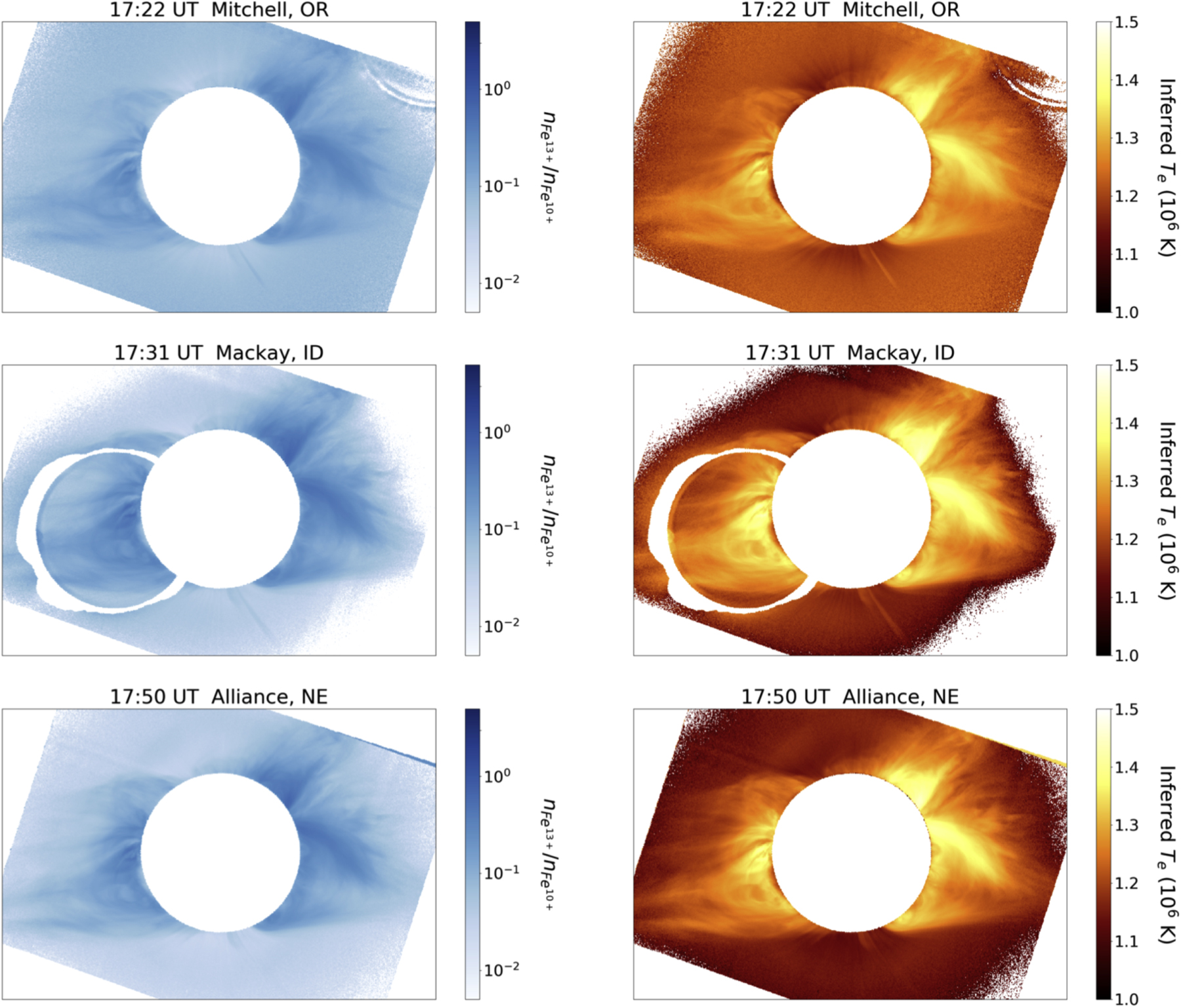

Left: Density ratio of Fe ﹩{}^{{13}^{+}}﹩ to Fe ﹩{}^{{10}^{+}}﹩ as calculated using Equation (9) (see Section 3.2.3) from the observations of Fe XI and Fe XIV made at three separate sites. Right: Inferred electron temperature (T_e) from the relative density measurements that were fed through the temperature function shown in Figure 9. The white ring in the middle panels indicates the location of a ghost image as in Figure 5.
