Figure 3 from Toward a Quantitative Model for Simulation and Forecast of Solar Energetic Particle Production during Gradual Events. I. Magnetohydrodynamic Background Coupled to the SEP Model

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Toward a Quantitative Model for Simulation and Forecast of Solar Energetic Particle Production during Gradual Events. I. Magnetohydrodynamic Background Coupled to the SEP Model

Authors: D. Borovikov, I. V. Sokolov, I. I. Roussev, A. Taktakishvili, and T. I. Gombosi

2018 The Astrophysical Journal 864 88.

Provider: AAS Journals

Caption: Figure 3.

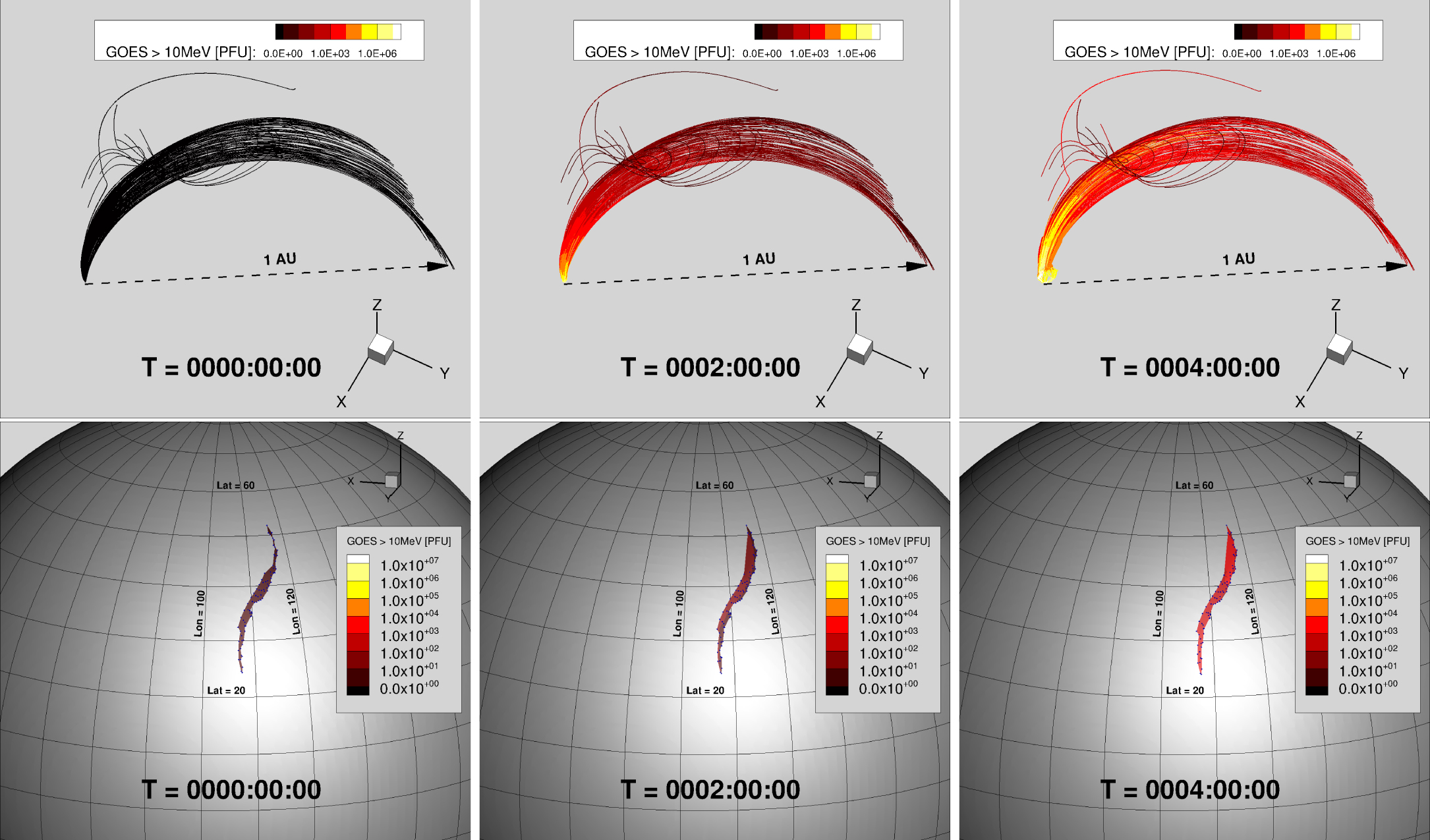

Simulated flux of SEP exceeding 10 MeV (GOES channel 2): along the extracted lines from the Sun to 1 au (top) and interpolated between footprints (small blue diamonds) of lines on a 1 au sphere (bottom).
