Figure 2 from EXTRAGALACTIC PLUS GALACTIC MODEL FOR ICECUBE NEUTRINO EVENTS

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

EXTRAGALACTIC PLUS GALACTIC MODEL FOR ICECUBE NEUTRINO EVENTS

2016 The Astrophysical Journal 826 185.

Caption: Figure 2.

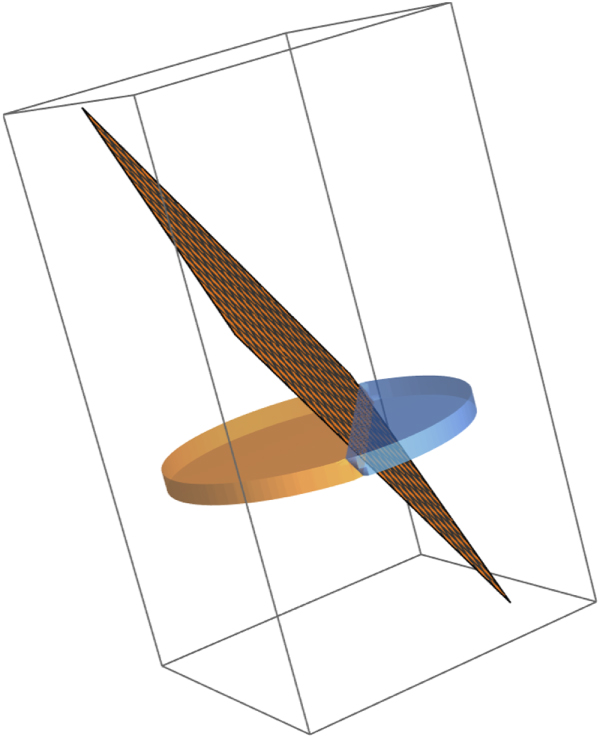

Simplified cylindrical model of the Galaxy. The relative orientation of the Earth’s equatorial plane (orthogonal to rotation axis) is also shown.
