Emission Measure Distribution for Diffuse Regions in Solar Active Regions

Authors: Srividya Subramanian, Durgesh Tripathi, James A. Klimchuk, and Helen E. Mason

Subramanian et al. 2014 The Astrophysical Journal 795 76.

Provider: AAS Journals

Caption: Figure 3.

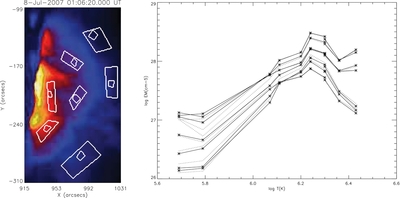

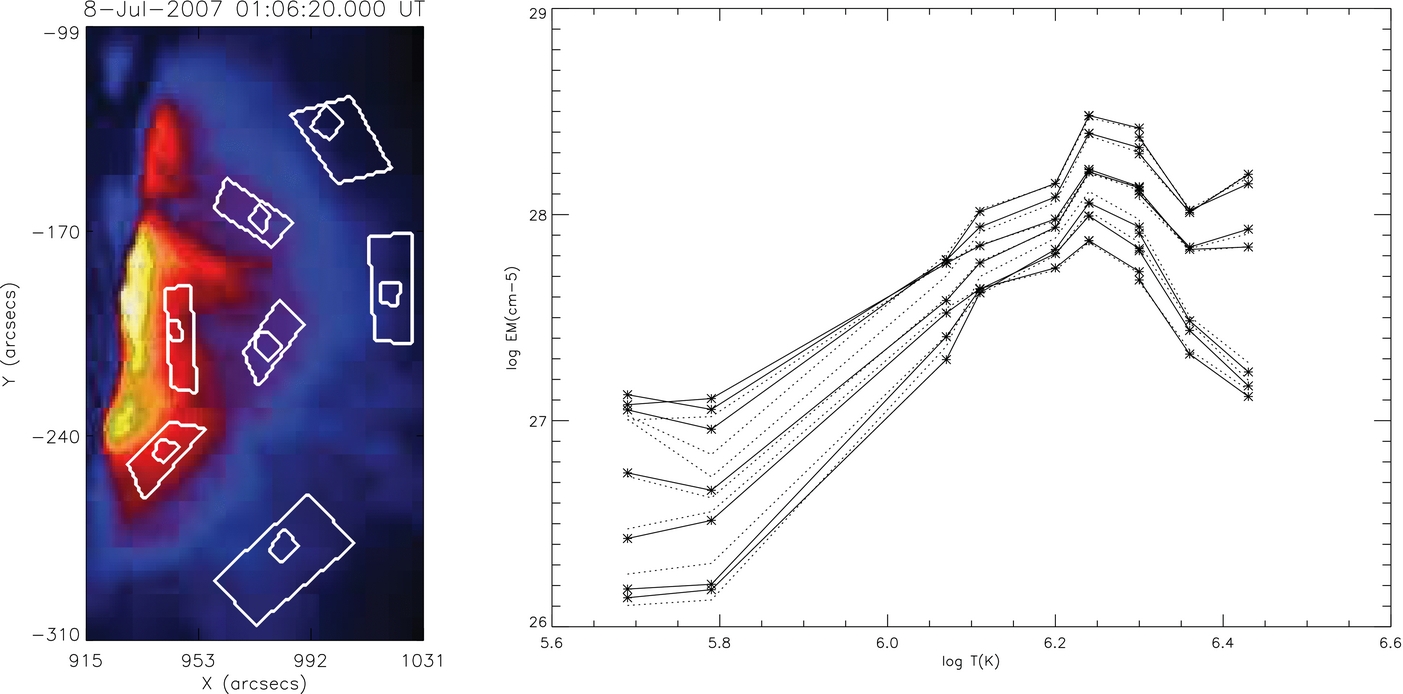

Left: intensity image of AR 10961 in Fe XIII with the chosen masked regions overplotted with white boxes. Right: emission measure curves of all the masked regions, where continuous and dotted lines represent masked regions enclosed by the bigger boxes and sub-boxes, respectively.
