Simulations of Ion Acceleration at Non-relativistic Shocks. II. Magnetic Field Amplification

Authors: D. Caprioli and A. Spitkovsky

Caprioli & Spitkovsky 2014 The Astrophysical Journal 794 46.

Provider: AAS Journals

Caption: Figure 3.

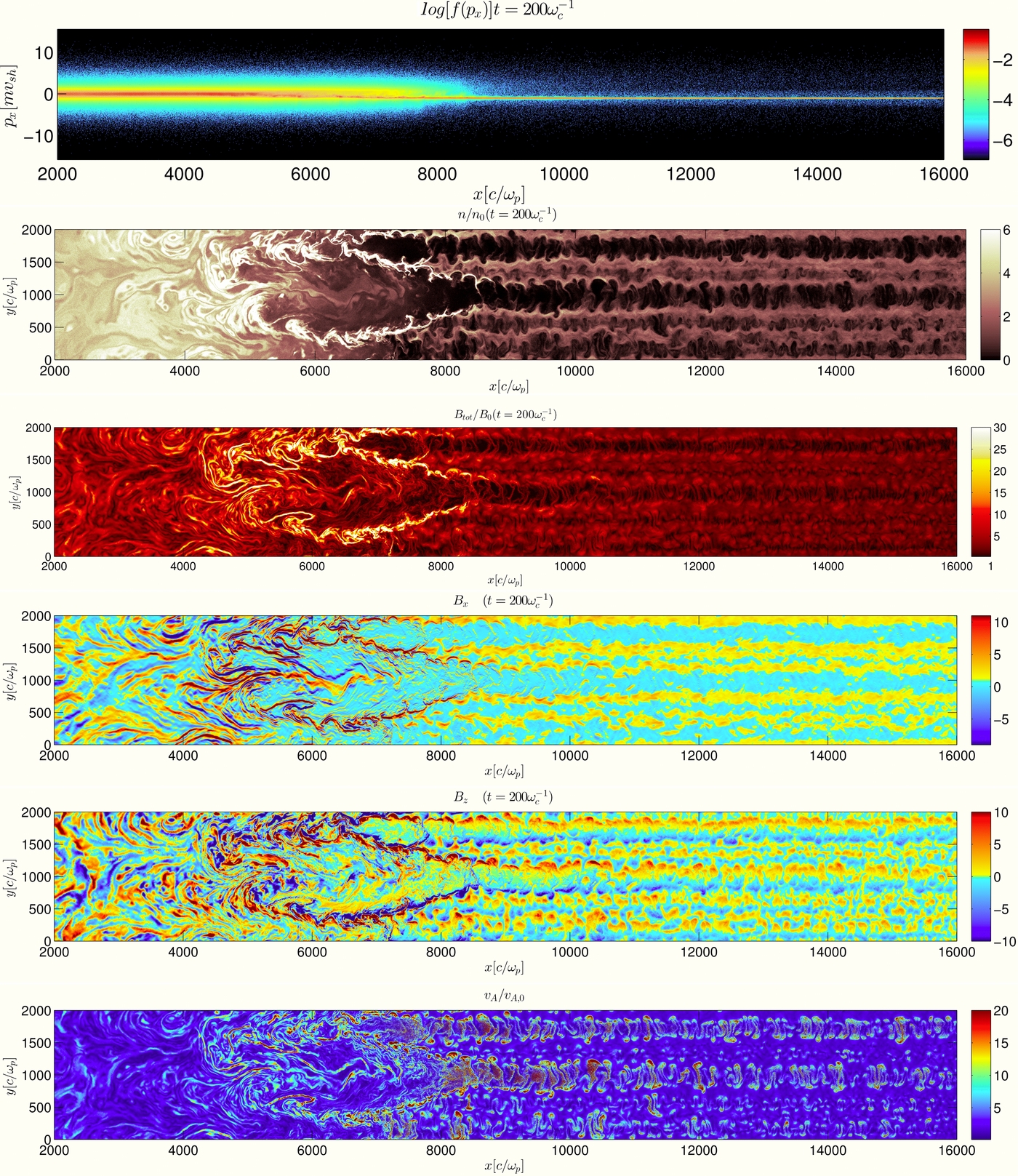

Relevant physical quantities for a parallel shock with M = 100 at , as a function of x (Run C in Table 1). From top to bottom: parallel component of the ion momentum, ion density, total magnetic field, parallel, and out of plane components of the magnetic field, and Alfvén velocity.
