Figure 4 from The Relationship between Extreme Ultraviolet Non-thermal Line Broadening and High-energy Particles during Solar Flares

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Relationship between Extreme Ultraviolet Non-thermal Line Broadening and High-energy Particles during Solar Flares

Authors: T. Kawate and S. Imada

Kawate & Imada 2013 The Astrophysical Journal 775 122.

Provider: AAS Journals

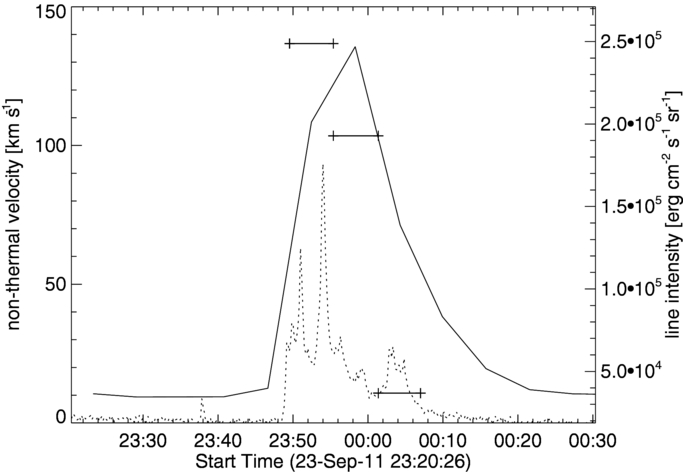

Caption: Figure 4.

Temporal evolution of the intermediate flare event (horizontal line: Fe xxiv full-FOV non-thermal velocity; solid line: Fe xxiv full-FOV intensity integrated from 191.90 to 192.15 Å; dotted line: 17 GHz microwaves).
