The Relationship between Extreme Ultraviolet Non-thermal Line Broadening and High-energy Particles during Solar Flares

Authors: T. Kawate and S. Imada

Kawate & Imada 2013 The Astrophysical Journal 775 122.

Provider: AAS Journals

Caption: Figure 2.

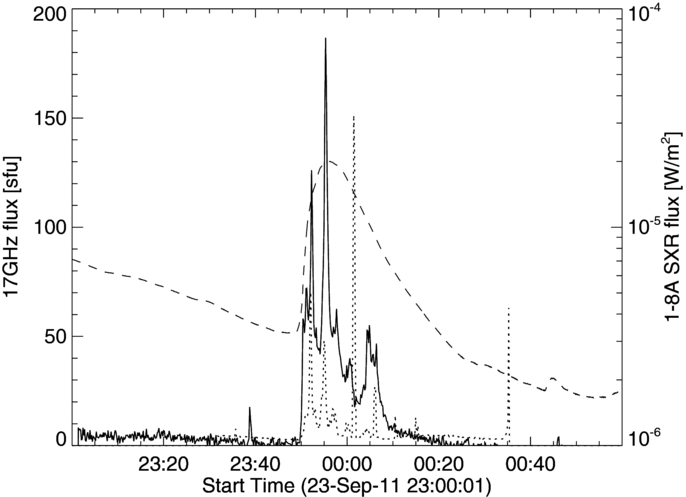

Light curves of 17 GHz microwaves (solid line), GOES (dashed line), and HXR 25–50 keV (dotted line) during the intermediate flare on 2011 September 23 (event (b)).
