Figure 8 from The Response of Metal-rich Gas to X-Ray Irradiation from a Massive Black Hole at High Redshift: Proof of Concept

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Response of Metal-rich Gas to X-Ray Irradiation from a Massive Black Hole at High Redshift: Proof of Concept

Authors: A. Aykutalp, J. H. Wise, R. Meijerink, and M. Spaans

Aykutalp et al. 2013 The Astrophysical Journal 771 50.

Provider: AAS Journals

Caption: Figure 8.

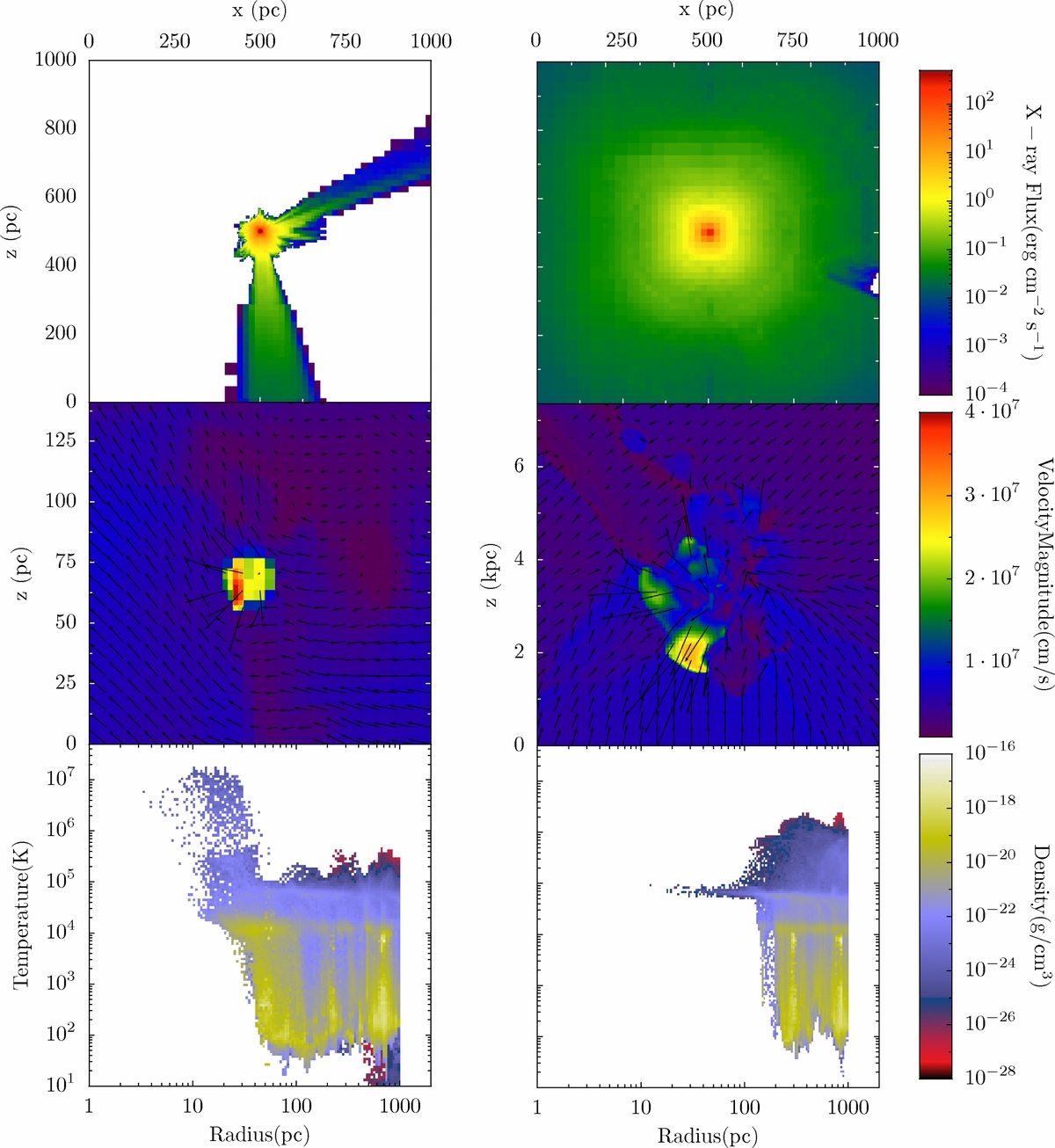

X-ray flux (top) and velocity magnitude (middle) slices along the x-axis, and temperature vs. radius profile, color coded with density (bottom) for the XDR _S run at z = 14.17 (left) and z = 13.54 (right). The velocity plot is overlaid with velocity vectors in order to show the outflow.
