Figure 5 from The Response of Metal-rich Gas to X-Ray Irradiation from a Massive Black Hole at High Redshift: Proof of Concept

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Response of Metal-rich Gas to X-Ray Irradiation from a Massive Black Hole at High Redshift: Proof of Concept

Authors: A. Aykutalp, J. H. Wise, R. Meijerink, and M. Spaans

Aykutalp et al. 2013 The Astrophysical Journal 771 50.

Provider: AAS Journals

Caption: Figure 5.

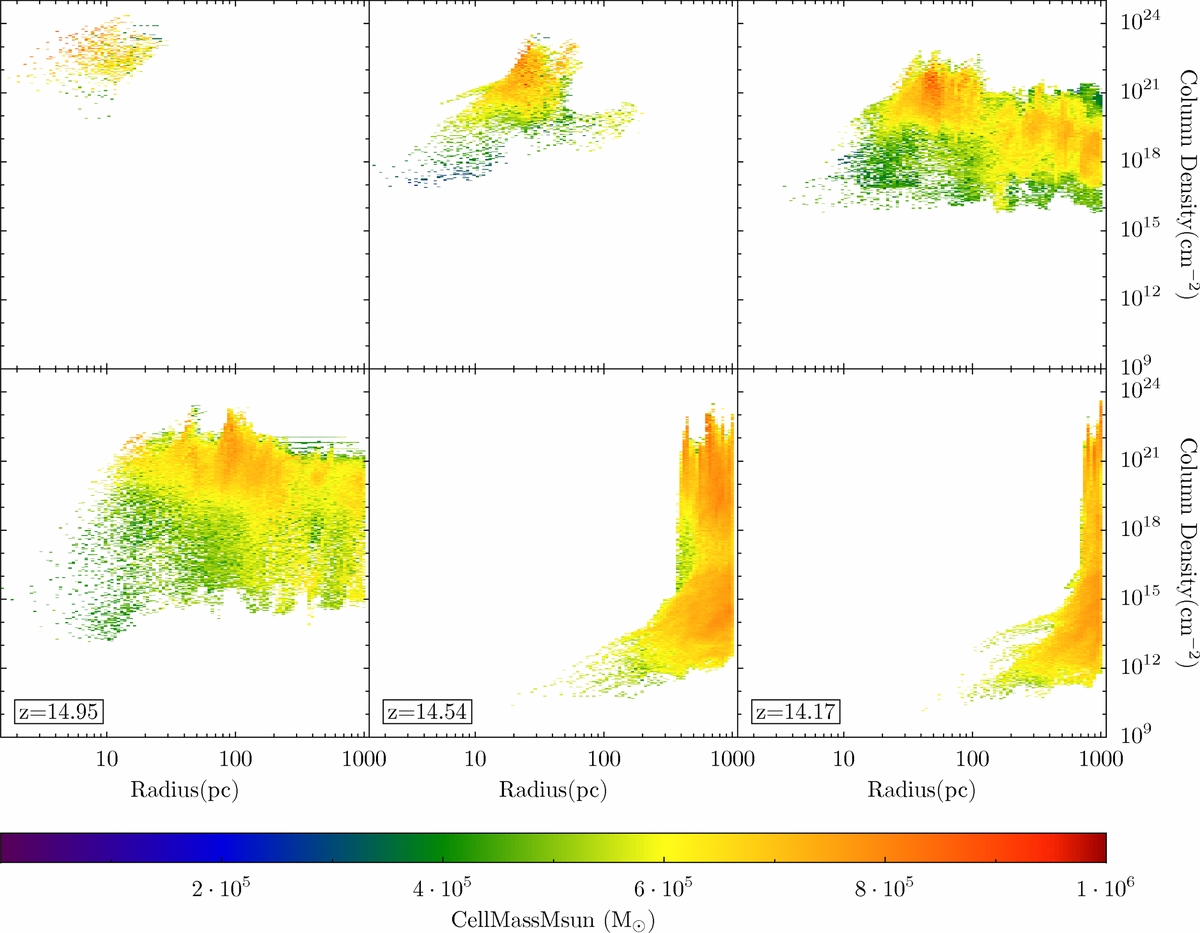

2D profiles of column density vs. radius for the XDR _S (top) and XDR _Z (bottom) runs at z = 14.95 (left), z = 14.54 (middle), and z = 14.17 (right).
