Two Extrasolar Asteroids with Low Volatile-element Mass Fractions

  • Authors: M. Jura, S. Xu(许偲艺), B. Klein, D. Koester, and B. Zuckerman

Jura et al. 2012 The Astrophysical Journal 750 69.

  • Provider: AAS Journals

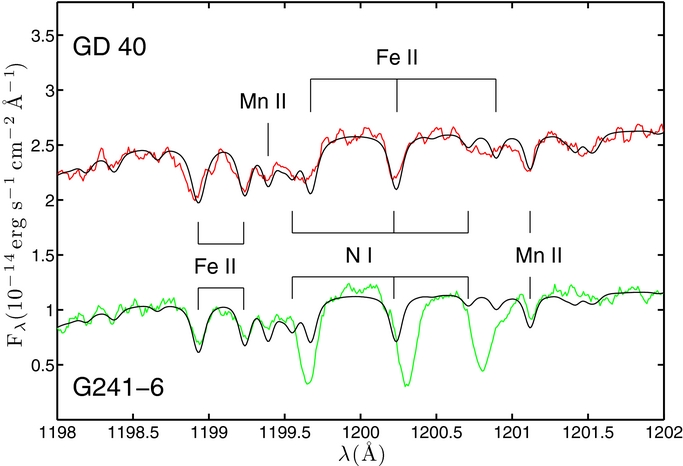

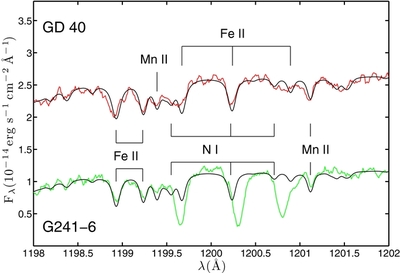

Caption: Figure 3.

Similar to Figure 1, except for the spectral region near prominent N i lines. For G241-6, the N i lines at 1199.55 Å, 1220.22 Å, and 1200.71 Å are shifted by +26 km s −1, +21 km s −1, and +26 km s −1, respectively, relative to the photospheric velocity. These N i lines likely are interstellar. For GD 40, the lines from Fe ii at 1199.67 Å, 1200.24 Å, and 1200.75 Å dominate in the model spectrum, and there is no evidence for any photospheric nitrogen.
