Evolution of Piled-up Compressions in Modeled Coronal Mass Ejection Sheaths and the Resulting Sheath Structures

Authors: Indrajit Das, Merav Opher, Rebekah Evans, Cristiane Loesch, and Tamas Gombosi

Das et al. 2011 The Astrophysical Journal 729 112.

Provider: AAS Journals

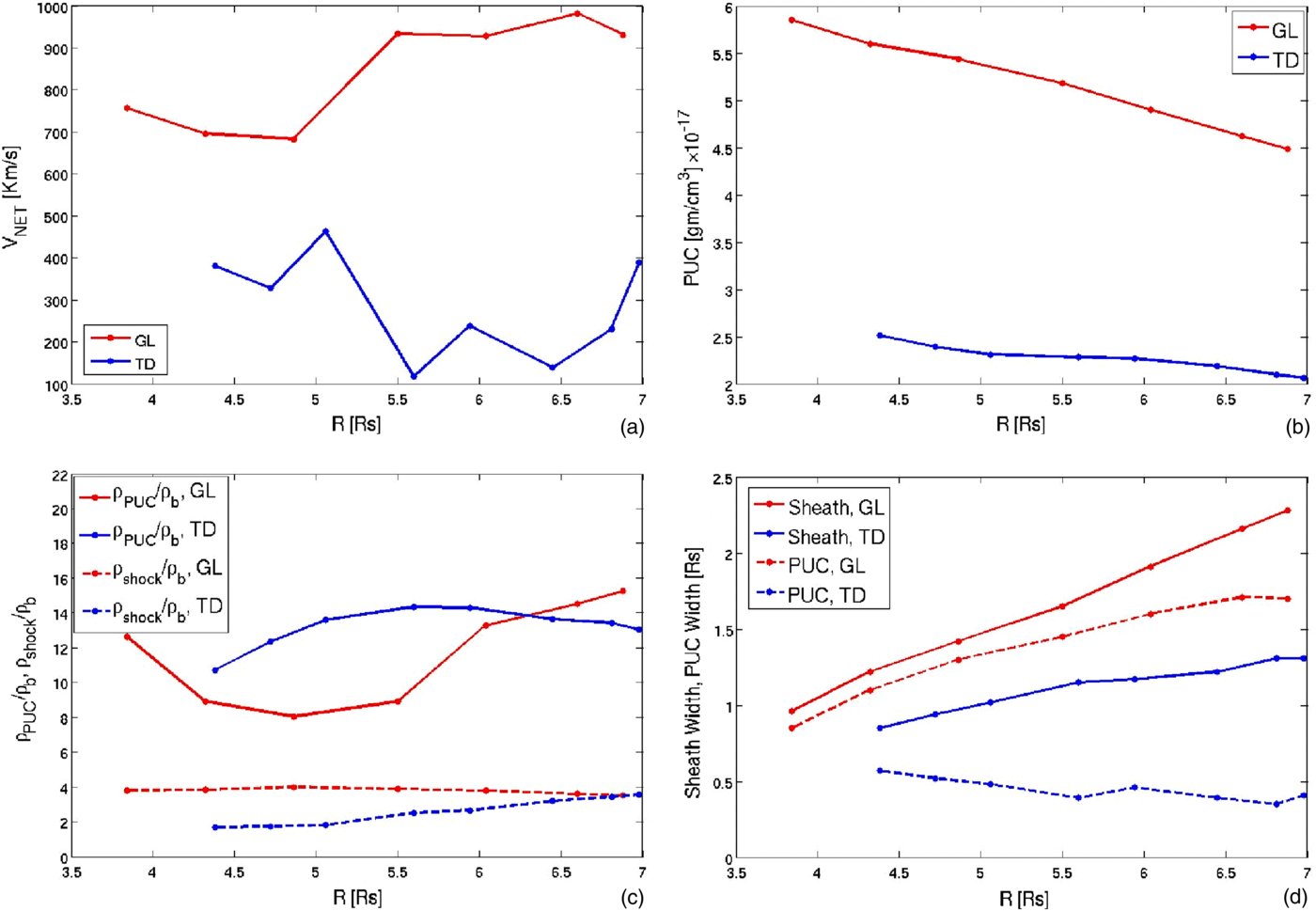

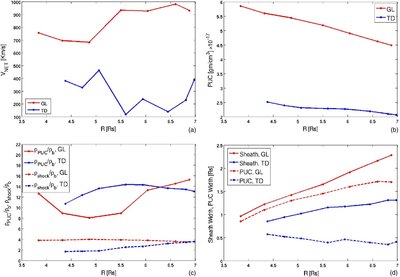

Caption: Figure 4.

Variations of (a) V _NET = V _EX + V _P − V _D and (b) PUC (top row from left), and (c) PUC and shock density compression ratio and (d) sheath and PUC widths with shock distance from the Sun following the white line shown in Figure 1 for GL and TD cases (bottom row from left).
