VLBI Data Processing on Coronal Radio-sounding Experiments of Mars Express

Authors: Maoli Ma*, Guifré Molera Calvés, Giuseppe Cimò, Peijin Zhang, Ming Xiong, Peijia Li, Pradyumna Kummamuru, Zhanghu Chu, Tianyu Jiang, Bo Xia, Kondo Tetsuro, Fengxian Tong, Pablo de Vicente, Jonathan Quick, Hua Zhang, and Zhong Chen

2021 The Astronomical Journal 162 141.

Provider: AAS Journals

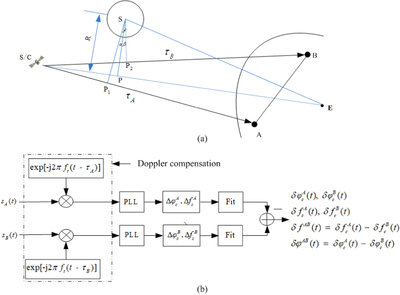

Caption: Figure 1.

(a) Schematic representation of the observation of the spacecraft by two spaced stations during a radio-sounding experiment. (b) The algorithms of local correlation. s_A(t) and s_B(t) are the received signals at the two different stations. The local correlation compensates for the Doppler shift of spacecraft using the spacecraft’s priori ephemerides.
