The Three-Dimensional Dynamic Structure of the Inner Orion Nebula

Authors: C. R. O'Dell, W. J. Henney, N. P. Abel, G. J. Ferland, and S. J. Arthur

O'DELL et al. 2009 The Astronomical Journal 137 367.

Provider: AAS Journals

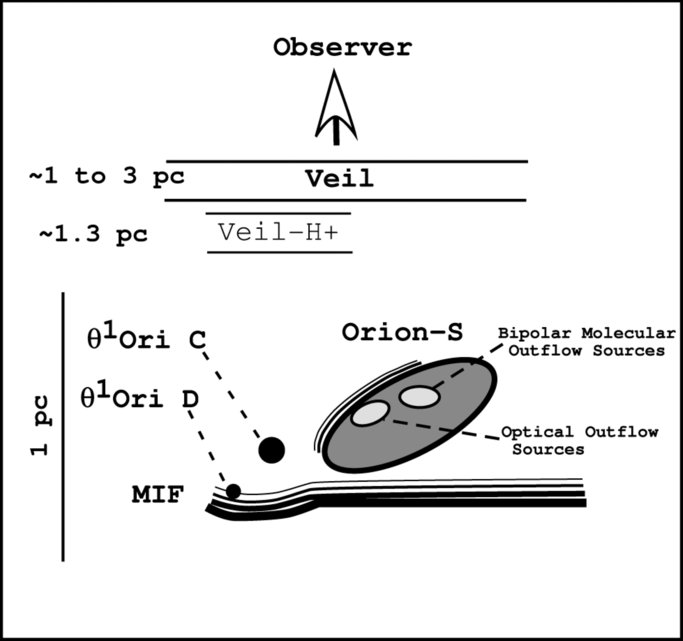

Caption: Figure 5.

This sketch shows a southwest cross section passing through the Trapezium and Orion-S. The MIF is depicted as flat behind Orion-S only because of a lack of information as to its true shape there. Although dimensions are shown, the uncertainty in the exact positions means that the figure is not drawn to scale.
