Fig. 9 from Pulse Profiles, Spectra, and Polarization Characteristics of Nonthermal Emissions from the Crab‐like Pulsars

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

Pulse Profiles, Spectra, and Polarization Characteristics of Nonthermal Emissions from the Crab‐like Pulsars

Authors: J. Takata and H.-K. Chang

Takata & Chang 2007 The Astrophysical Journal 670 677.

Provider: AAS Journals

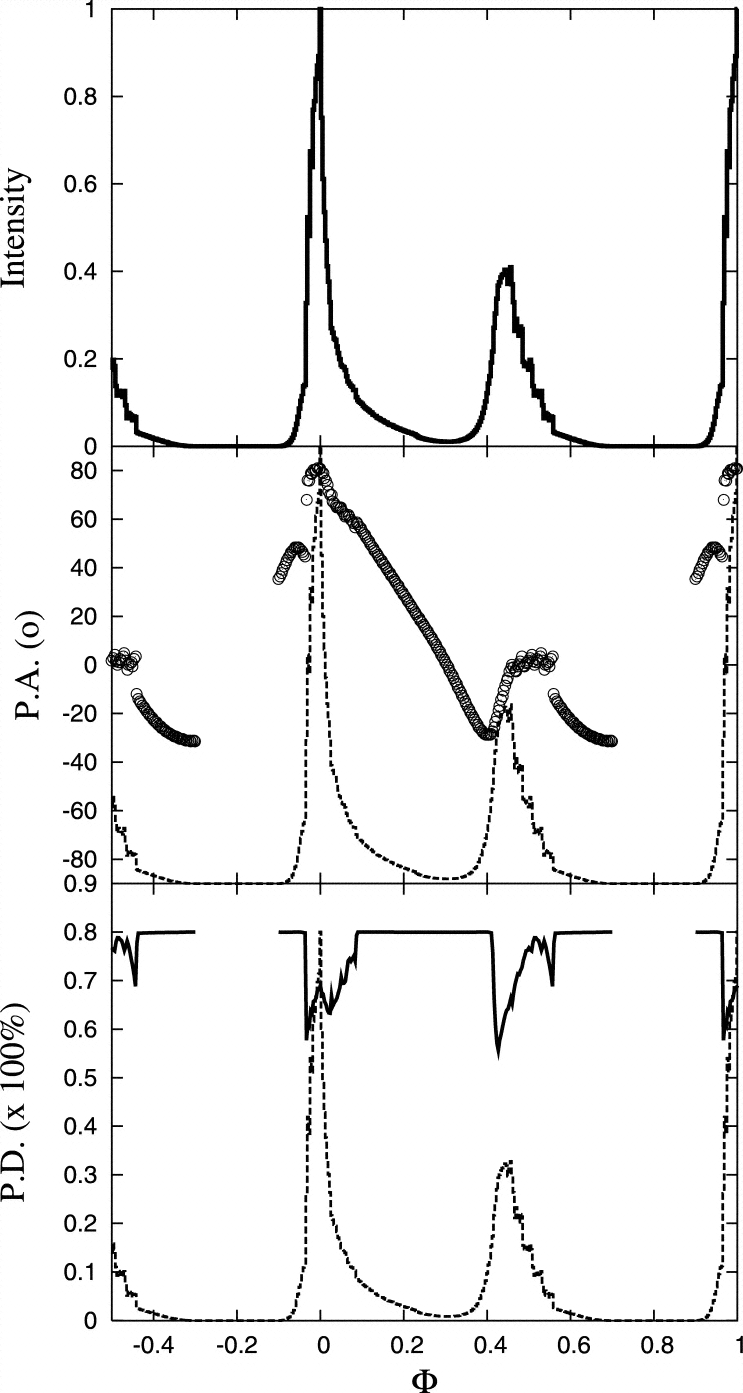

Caption: Fig. 9.

Polarization characteristic of the curvature radiation in the outer gap. The 80% level of the polarization degree for each radiation was assumed to be the intrinsic level. The results are for ﹩\alpha =50^{\circ }﹩, ﹩\xi =100^{\circ }﹩, and ﹩r_{\mathrm{in}\,}=0.67r_{n}﹩.
