The Blue Straggler Population of the Globular Cluster M5

Authors: B. Lanzoni, E. Dalessandro, F. R. Ferraro, C. Mancini, G. Beccari, R. T. Rood, M. Mapelli, and S. Sigurdsson

Lanzoni et al. 2007 The Astrophysical Journal 663 267.

Provider: AAS Journals

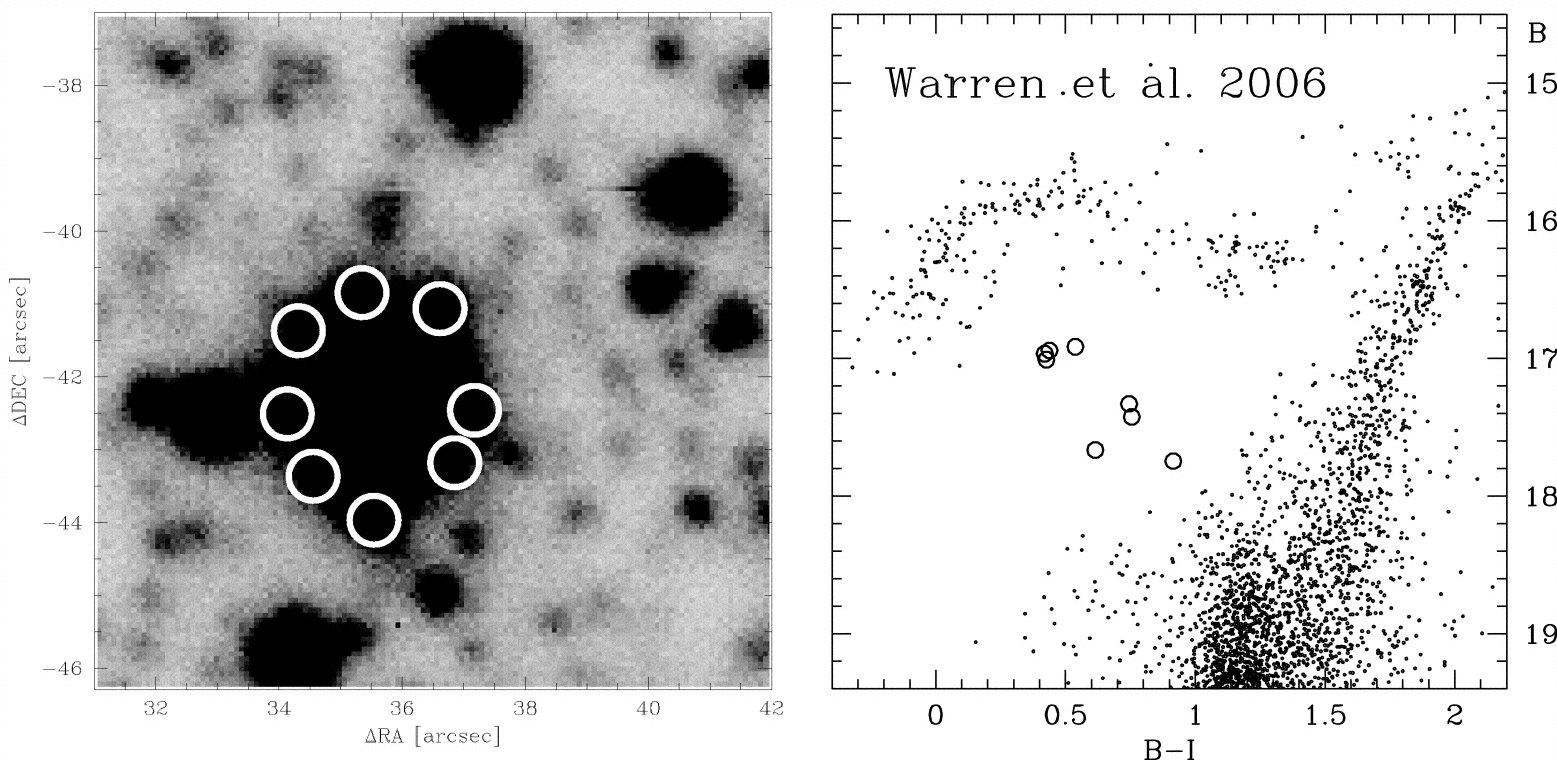

Caption: Fig. 8.

Left: Position of the eight false BSSs (white circles) as derived from Table 2 of W06, overplotted to the CFHT image (units are the same as in their Fig. 1). As can be seen, a heavily saturated star is responsible for the false identification. Right: Location of the eight false BSSs (open circles) in the (B, ﹩B-I﹩) plane, as derived from Table 2 of W06 (see their Fig. 2).
