Fig. 5 from Three‐Year Wilkinson Microwave Anisotropy Probe (WMAP) Observations: Polarization Analysis

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Three‐Year Wilkinson Microwave Anisotropy Probe (WMAP) Observations: Polarization Analysis

Authors: L. Page, G. Hinshaw, E. Komatsu, M. R. Nolta, D. N. Spergel, C. L. Bennett, C. Barnes, R. Bean, O. Doré, J. Dunkley, M. Halpern, R. S. Hill, N. Jarosik, A. Kogut, M. Limon, S. S. Meyer, N. Odegard, H. V. Peiris, G. S. Tucker, L. Verde, J. L. Weiland, E. Wollack, and E. L. Wright

Page et al. 2007 The Astrophysical Journal Supplement Series 170 335.

Provider: AAS Journals

Caption: Fig. 5.

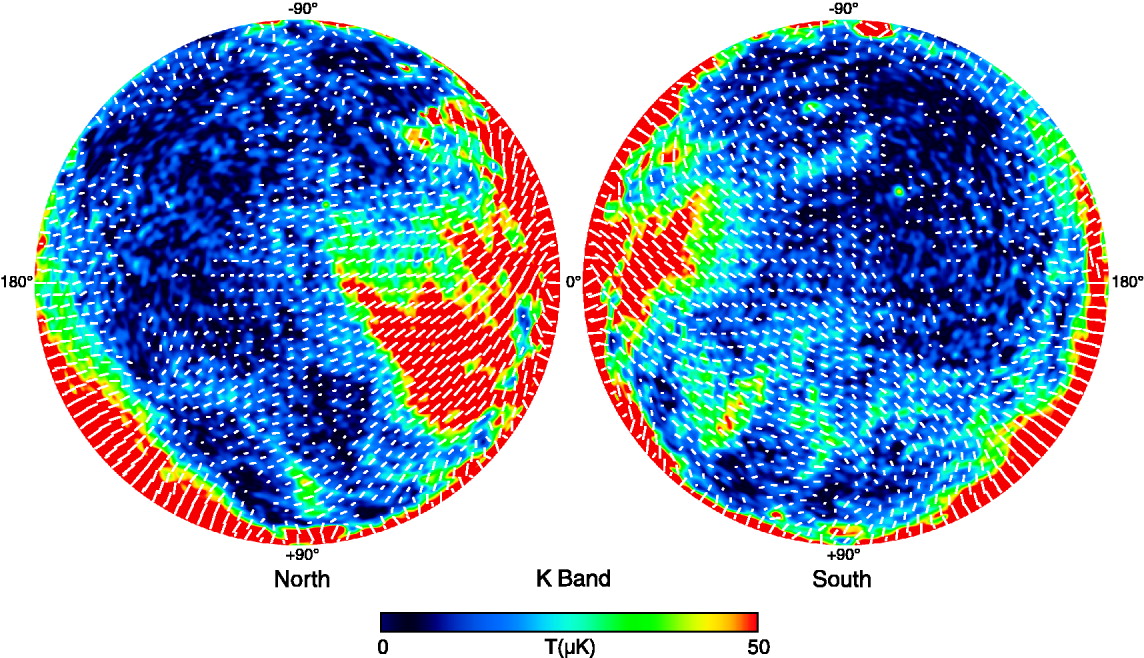

Lambert azimuthal equal area projection of the Galactic poles (left: north) showing the K‐band polarization. The circumference of each map is at zero Galactic latitude. The convention in this plot is to use bars to indicate the polarization direction. It is clear that the polarization extends to high Galactic latitudes. A map of the noise bias is subtracted from this image.
