Power Spectra of Black Holes and Neutron Stars as a Probe of Hydrodynamic Structure of the Source: Diffusion Theory and Its Application to Cygnus X‐1 and Cygnus X‐2 X‐Ray Observations

  • Authors: Lev Titarchuk, Nikolai Shaposhnikov, and Vadim Arefiev

Titarchuk, Shaposhnikov, & Arefiev 2007 The Astrophysical Journal 660 556.

  • Provider: AAS Journals

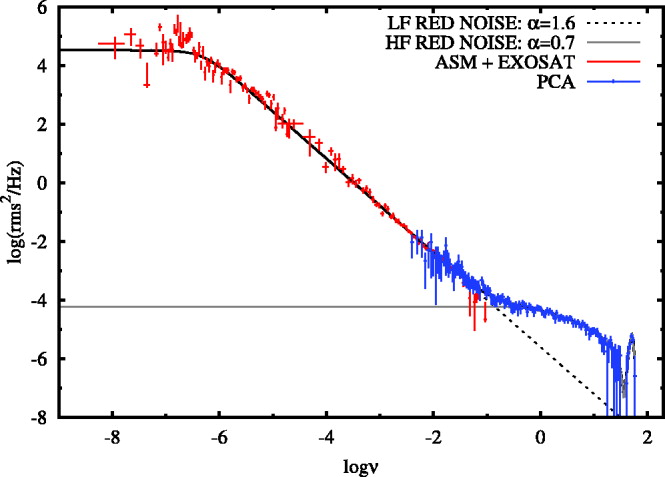

Caption: Fig. 11.

EXOSAT‐ASM‐PCA (RXTE) power spectrum of Cyg X‐2 in frequency range that covers 10 orders of magnitude. One can clearly see LF and HF WRN components in PDS, related to the extended Keplerian disk and relatively compact, inner disklike configuration (sub‐Keplerian Compton corona), respectively. Each of these two components is perfectly fitted by our WRN model (see eqs. [85] and [86]); dotted and solid lines are for LF and HF best‐fit models, respectively, with ﹩\chi ^{2}/ N_{\mathrm{dof}\,}=393.2/ 244=1.6﹩ (see the text for the best‐fit parameter values).
