Fig. 9 from Measurement of the Energy Release Rate and the Reconnection Rate in Solar Flares

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Measurement of the Energy Release Rate and the Reconnection Rate in Solar Flares

Isobe, Takasaki, & Shibata 2005 The Astrophysical Journal 632 1184.

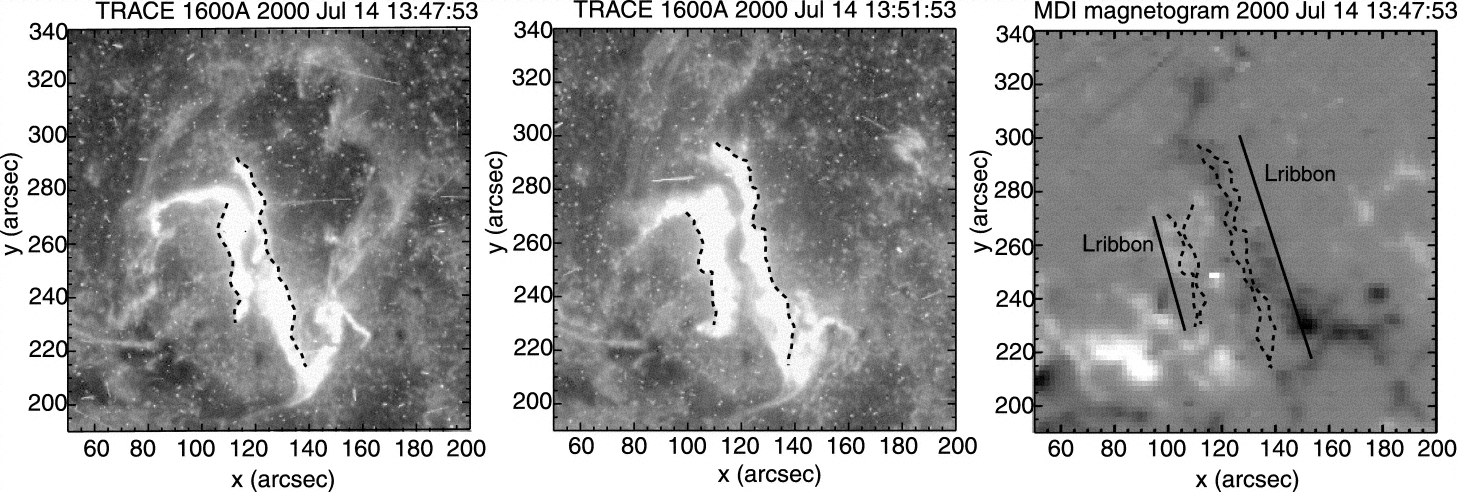

Caption: Fig. 9.

Same figure as Fig. 7, but for the M3.7 flare on 2000 July 14.
