Fig. 5 from Measurement of the Energy Release Rate and the Reconnection Rate in Solar Flares

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Measurement of the Energy Release Rate and the Reconnection Rate in Solar Flares

Authors: Hiroaki Isobe, Hiroyuki Takasaki, and Kazunari Shibata

Isobe, Takasaki, & Shibata 2005 The Astrophysical Journal 632 1184.

Provider: AAS Journals

Caption: Fig. 5.

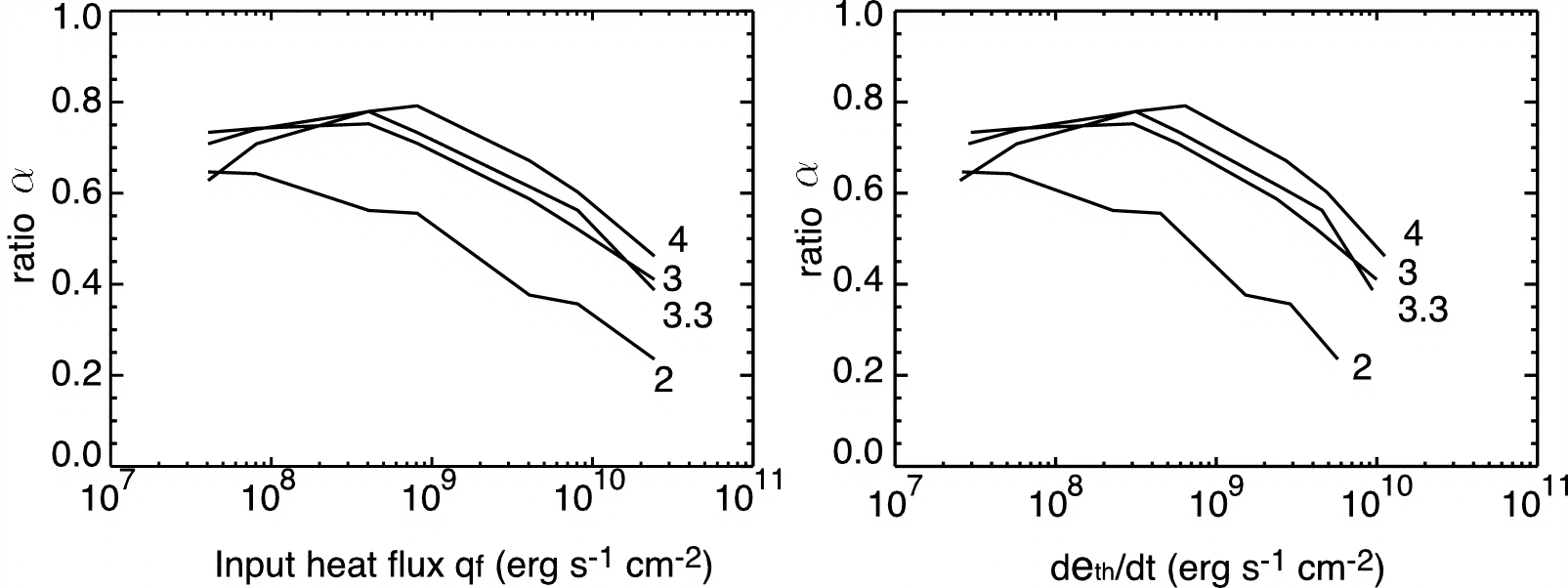

Ratio ﹩\alpha =( de_{\mathrm{th}\,}/ dt) / q_{f}﹩ plotted vs. q_f (left) and de_th/dt (right). The numbers in the figure indicate the loop length (10⁹ cm).
