Spatial Clustering of Photospheric Structures

  • Authors: F. Berrilli, D. Del Moro, S. Russo, G. Consolini, and Th. Straus

Berrilli et al. 2005 The Astrophysical Journal 632 677.

  • Provider: AAS Journals

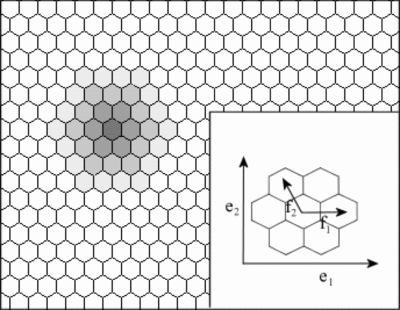

Caption: Fig. 2.

Hexagonal rosettes of growing dimension (gray scale hexagons) whose areas are ﹩3m_{h}( m_{h}-1) +1﹩, where mh is the side of the rosette. Inset: The orientation of the hexagonal grid has been set in order to have ﹩\boldsymbol{e}_{1}\parallel \boldsymbol{f}_{1}﹩, where ﹩\boldsymbol{f}_{1}﹩ and ﹩\boldsymbol{f}_{2}﹩ are the hexagonal lattice vectors and ﹩\boldsymbol{e}_{1}﹩ and ﹩\boldsymbol{e}_{2}﹩ are the square lattice vectors. The horizontal dimension L, in hexagonal pixels, of the reported rosette is 3.
