On the Temporal Relationship between Coronal Mass Ejections and Flares

Authors: J. Zhang, K. P. Dere, R. A. Howard, M. R. Kundu, and S. M. White

Zhang et al. 2001 The Astrophysical Journal 559 452.

Provider: AAS Journals

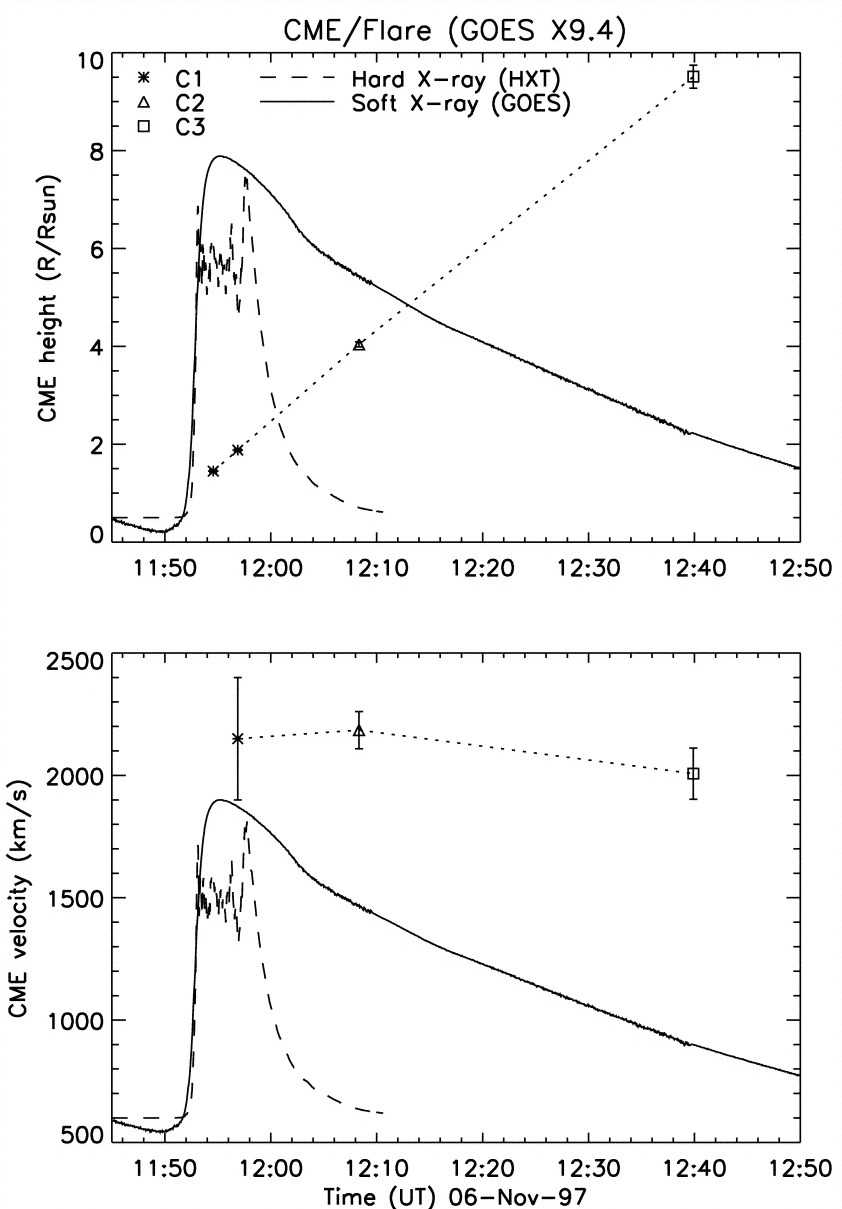

Caption: Fig. 9.

Same as Fig. 2, but for the height‐time profile of the CME on 1997 November 6 vs. the temporal profile of GOES X‐ray flux of the corresponding X9.4 flare. In addition, we show the hard X‐ray profile of HXT (dashed line) in both panels.
