Fig. 6 from On the Temporal Relationship between Coronal Mass Ejections and Flares

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF

On the Temporal Relationship between Coronal Mass Ejections and Flares

Authors: J. Zhang, K. P. Dere, R. A. Howard, M. R. Kundu, and S. M. White

Zhang et al. 2001 The Astrophysical Journal 559 452.

Provider: AAS Journals

Caption: Fig. 6.

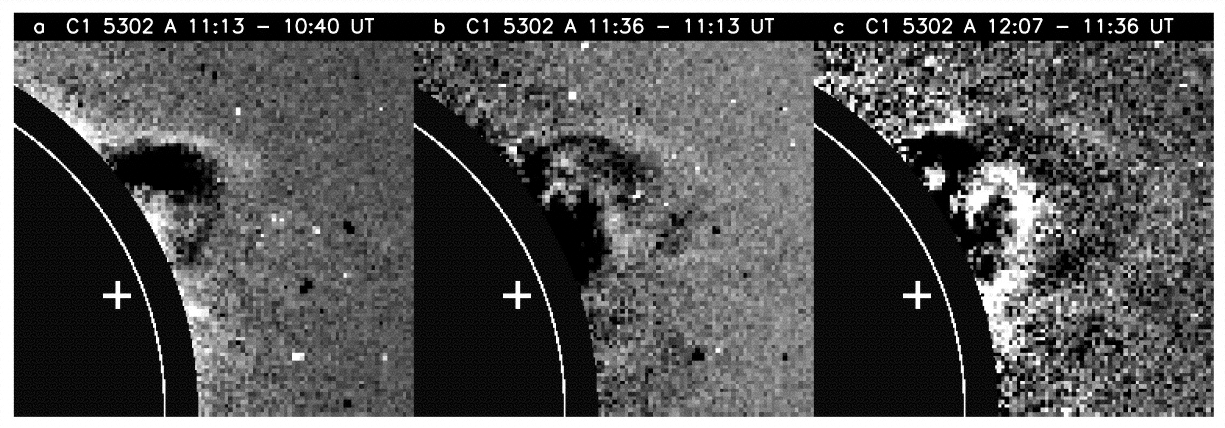

Running difference images of C1 showing evolution of the CME on 1997 May 16. Their timings are indicated at the top of each panel. The white circle in each panel indicates the 1.0 ﹩R_{\odot }﹩ solar limb. The plus sign indicates the position of the corresponding flare.
