On the Temporal Relationship between Coronal Mass Ejections and Flares

Authors: J. Zhang, K. P. Dere, R. A. Howard, M. R. Kundu, and S. M. White

Zhang et al. 2001 The Astrophysical Journal 559 452.

Provider: AAS Journals

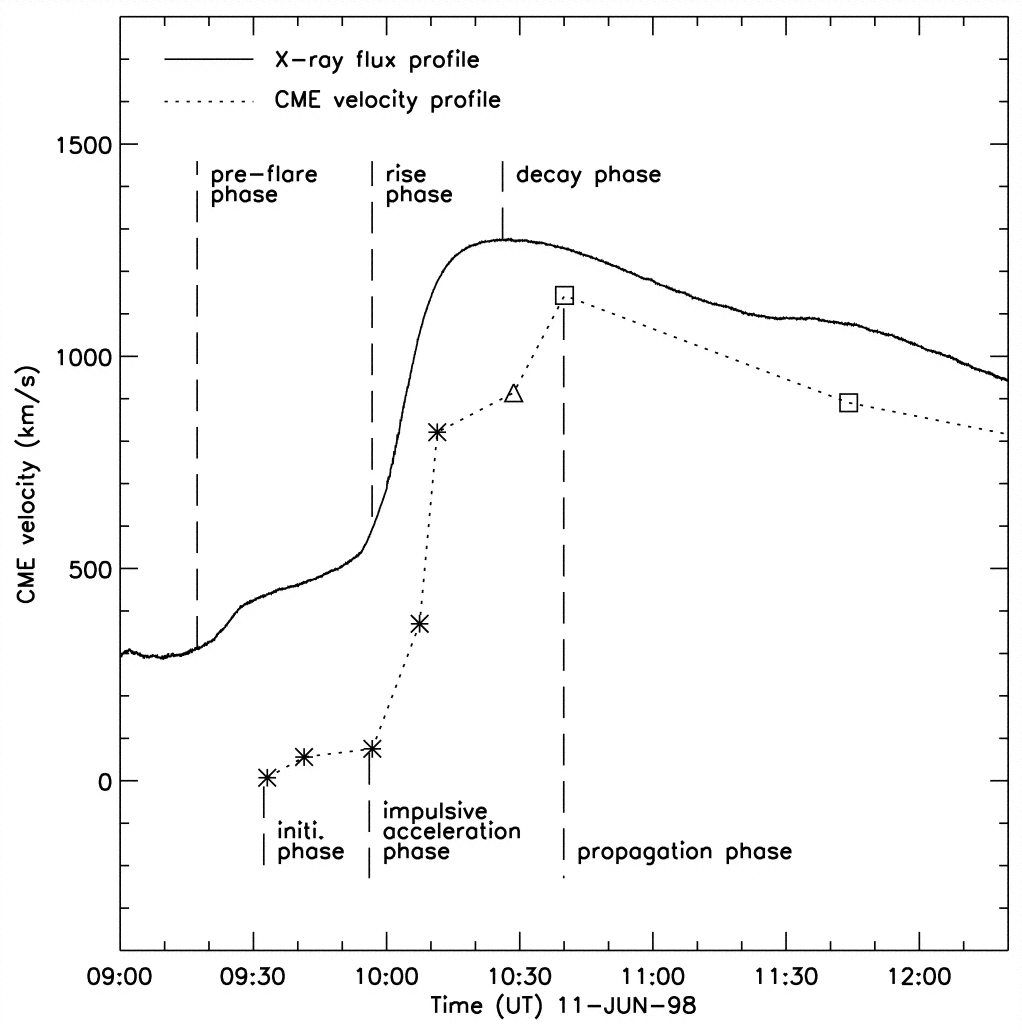

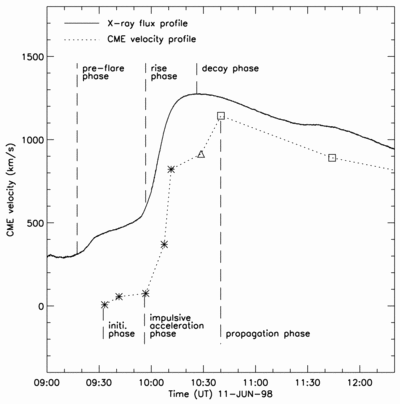

Caption: Fig. 3.

Illustration of three phases of the CME velocity‐time profile (dotted line) and the flare soft X‐ray flux temporal profile (solid line) for the event on 1998 June 11. Note that the CME impulsive acceleration phase coincides well with the flare rise phase.
