Two New Planets from the Anglo‐Australian Planet Search

  • Authors: R. Paul Butler, C. G. Tinney, Geoffrey W. Marcy, Hugh R. A. Jones, Alan J. Penny, and Kevin Apps

Butler et al. 2001 The Astrophysical Journal 555 410.

  • Provider: AAS Journals

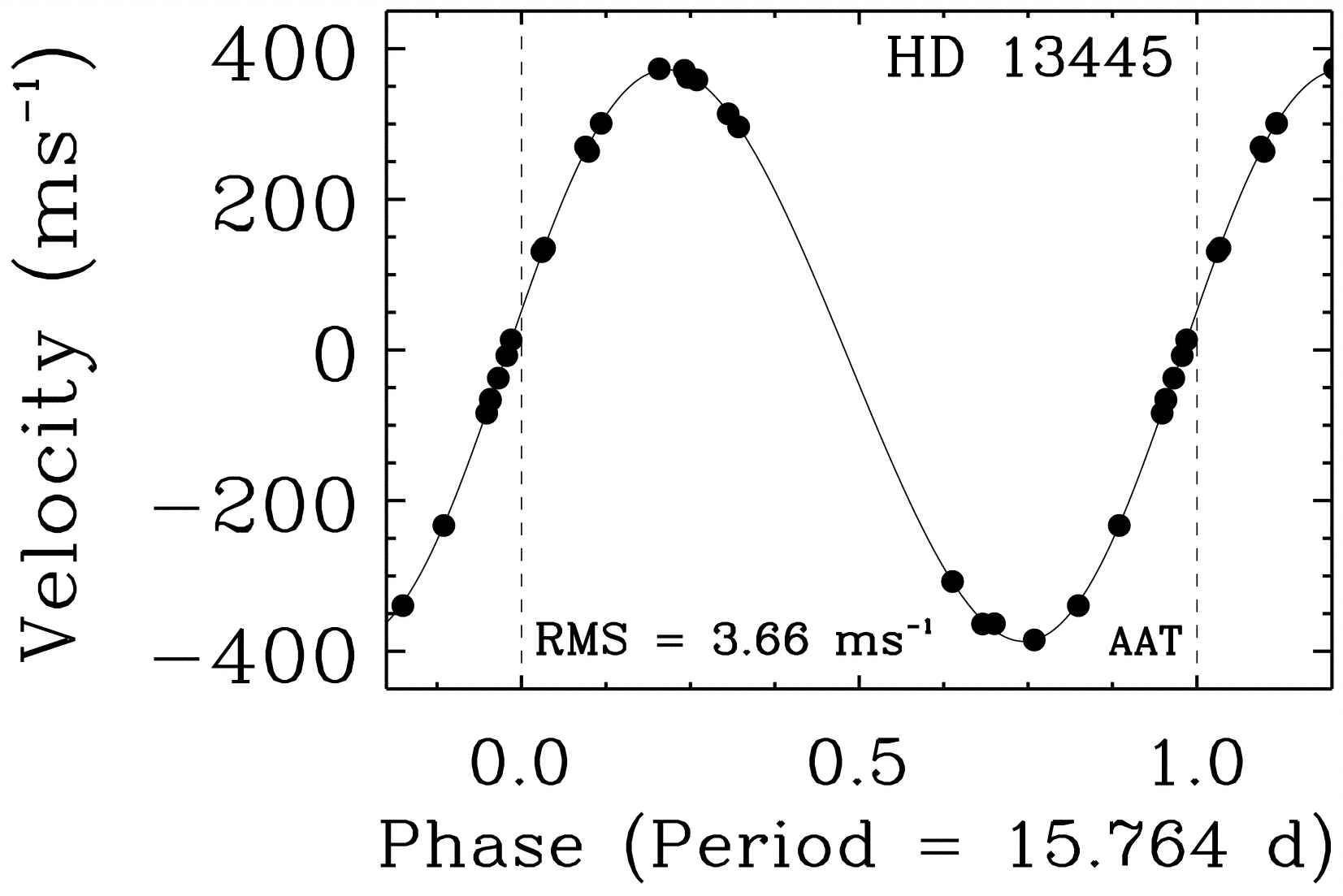

Caption: Fig. 8.

Phased Doppler velocities for HD 13445 (K1 V). The solid line is a Keplerian orbital fit with a period of 15.764 days, a semiamplitude of 379 m s−1, and an eccentricity of 0.046, yielding a minimum (﹩M\mathrm{sin}\,i﹩) of 4.04 ﹩M_{\mathrm{J}\,}﹩ for the companion. The rms of the Keplerian fit is 3.7 m s−1. A linear trend of −108.1 m s−1 yr−1 has been removed from these velocities. These results are consistent with Queloz et al. (2000), with the possible exception of the linear trend.
