Multiple Imaging of PSR B1133+16 by the Interstellar Medium

Authors: Yashwant Gupta, N. D. Ramesh Bhat, and A. Pramesh Rao

Gupta, Bhat, & Rao 1999 The Astrophysical Journal 520 173.

Provider: AAS Journals

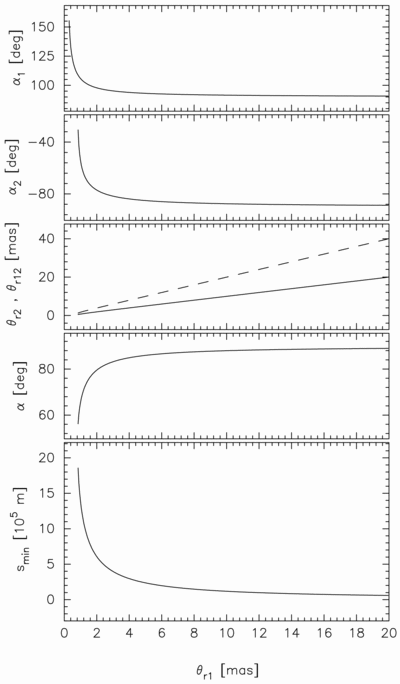

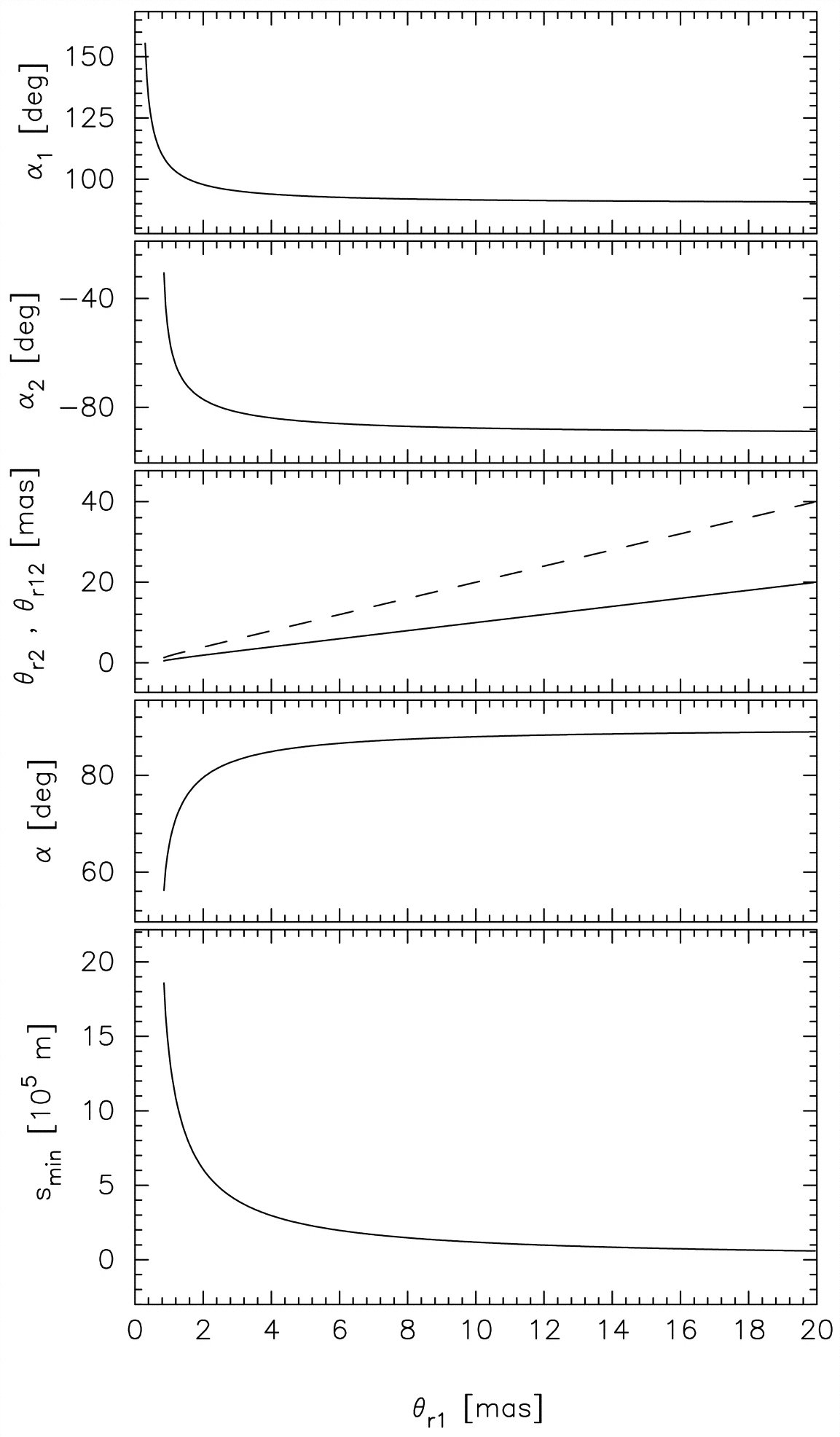

Caption: Fig. 5.

Variation of the different quantities as a function of refractive scattering angle, ﹩\theta _{r1}﹩. In the middle panel the solid line is for ﹩\theta _{r2}﹩ and the dashed line is for ﹩\theta _{r12}﹩.
