Single and Multiple Solar Flare Loops: Hydrodynamics and Ca XIX Resonance Line Emission

Authors: Kuniko Hori, Takaaki Yokoyama, Takeo Kosugi, and Kazunari Shibata

Hori et al. 1998 The Astrophysical Journal 500 492.

Provider: AAS Journals

Caption: Fig. 1.

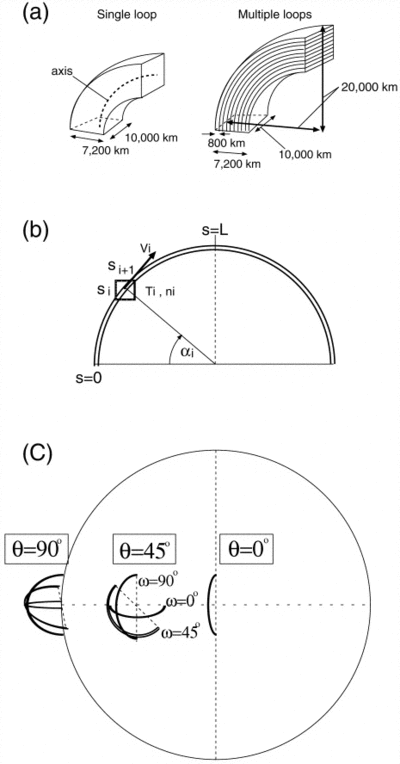

(a) Geometry of single and multiple loops. The numerical equations are solved along the axis of each loop. (b) Definition of the ith fluid element in individual loops. (c) Various loop orientations for loops with respect to the apparent equator (horizontal dashed line).
