Direct Molecular-scale Insight into Soluble Organic Matter from the Murchison and Aguas Zarcas Meteorites Enabled by 21T FT-ICR MS and Single-molecule HR-AFM Imaging

  • Authors: Joseph W. Frye-Jones, Martha L. Aguilera, Percy Zahl, Alan G. Marshall, Ryan P. Rodgers

Joseph W. Frye-Jones et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

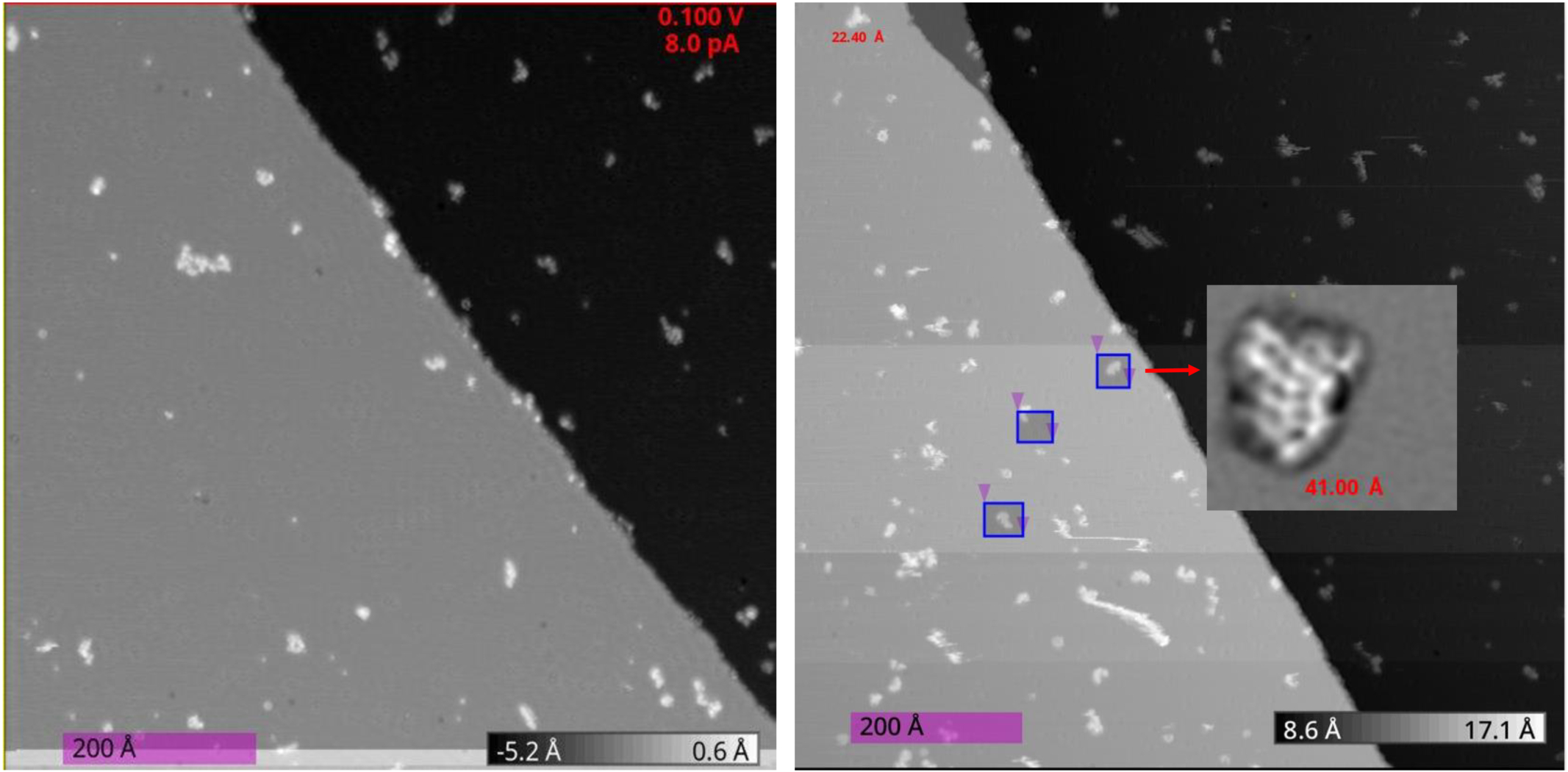

Caption: Figure C1.

Supplemental STM overview images from the acetone extraction of Murchison meteorite. Both images show STM overview images of molecules as deposited on a Cu(111) surface. Images were obtained at 100 mV at 8 pA. A few actual imaged molecule “candidates” are marked with boxes within the right image, along with one HR-AFM zoomed-in molecular structure (presented in Figure 9, image 4).
