CH₄-clathrates in Clay Minerals and Sulfate Brines: Application to Gale Crater on Mars

Authors: Victoria Muñoz-Iglesias, Elodie Gloesener, Carolina Gil-Lozano, Mathieu Choukroun, Olga Prieto-Ballesteros, Oscar Ercilla Herrero, Maite Fernández Sampedro, Valentín García Baonza, Gabriel Tobie

Victoria Muñoz-Iglesias et al 2026 The Planetary Science Journal 7 .

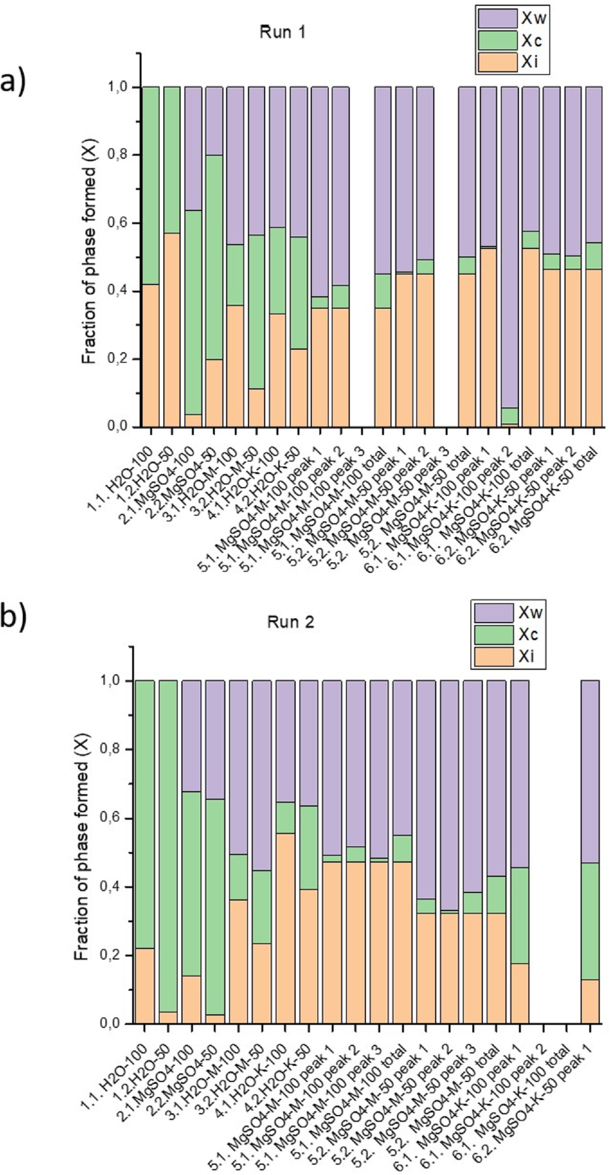

Caption: Figure 3.

Fraction of ice (Xi), clathrate (Xc), and residual supercooled water (Xw) formed in each set. The composition of each set can be seen in Table 1.
