Thin H2-dominated Atmospheres as Signposts of Magmatic Outgassing on Tidally Heated Terrestrial Exoplanets

  • Authors: Rahul Arora, Sukrit Ranjan, Pranabendu Moitra, Ananya Mallik

Rahul Arora et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

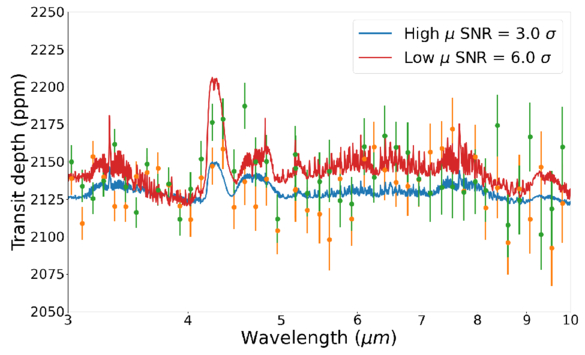

Caption: Figure 3.

Shown here is a comparison of spectral simulation of L 98-59 d with two bulk compositions, 100% N2 (blue) and 30 % N2 + 70 % H2 (red). The JWST simulated observations including noise (three transits, R (wavelength resolution) = 20) for the two respective cases are show in orange (30 % N2 + 70 % H2) and green (100% N2). The low- and high-μ atmospheres are detected at 6σ and 3σ confidence using three transits.
