Morphometric Properties of the CP-21 Landing Site on the Moon at Mons Gruithuisen Gamma

  • Authors: Jean-Pierre Williams, Sarah Valencia, Kristen A. Bennett, Margaret E. Landis, Kerri L. Donaldson Hanna, Adrienne Dove, Patrick O'Brien, Brett W. Denevi, Justin Hagerty, Craig Hardgrove, Paul O. Hayne, Adam LaMee, Thomas H. Prettyman, Katherine A. Shirley, Matthew A. Siegler, Jessica M. Sunshine

Jean-Pierre Williams et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

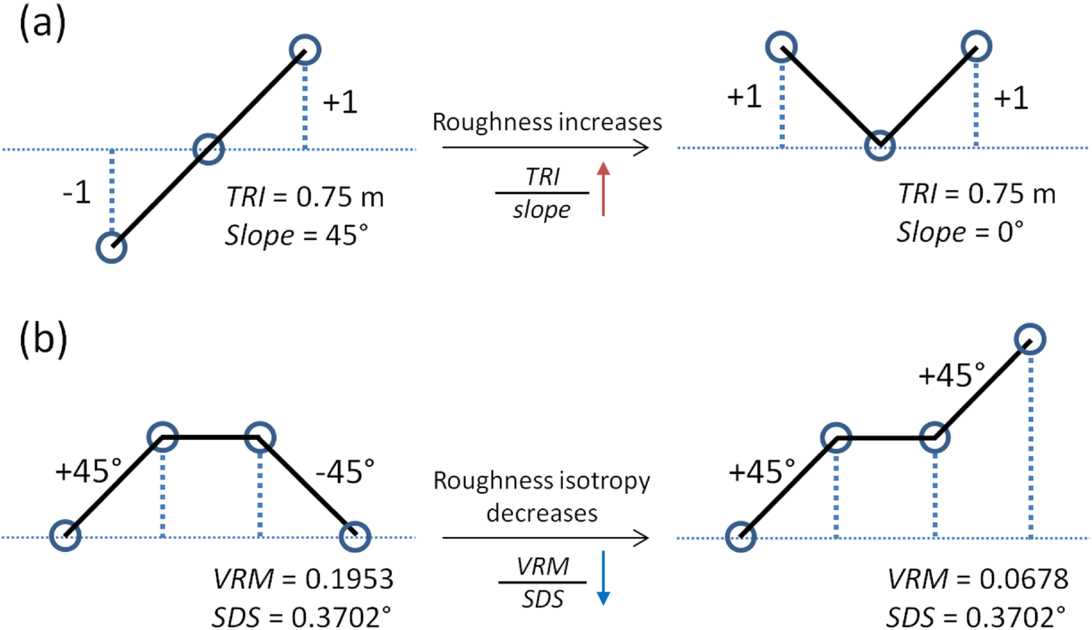

Caption: Figure 6.

Idealized terrain configurations demonstrating how morphometric parameters vary relative to each other for (a) TRI and slope, and (b) VRM and SDS. (a) A smooth surface sloped at 45° (left) and a rough, flat surface represented as a notch with 45° sloped surfaces facing toward each other (right). (b) A bump with 45° sloped surfaces on either side facing away from each other (left) and a step with 45° sloped surfaces on either side facing in the same direction (right).
