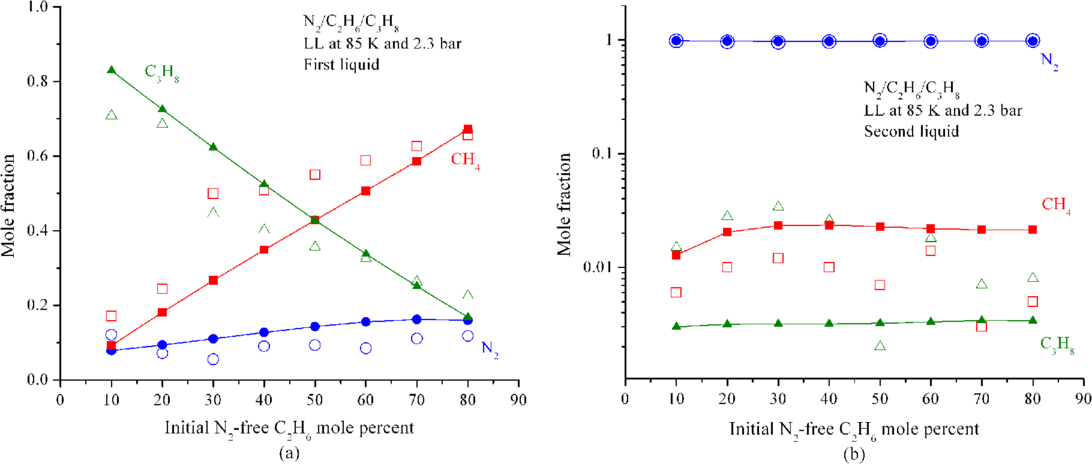

Compositions of first and second liquids in C₂H₆–C₃H₈-N₂ LL systems. The compositions calculated from experimental Raman spectra are represented by the open points, while the PC-SAFT calculations are shown as filled points. The x-axes show the initial mixing ratio of ethane for each experiment. The y-axes show the mole fraction of each species in the first or second liquid. Ethane concentrations are shown in red, propane in green, and nitrogen in blue.

(The data used to create this figure are available in the online article.)

(The data used to create this figure are available.)
