Dynamical Mass Demography of Single S-type Planets Shaped by Stellar Companions

  • Authors: Xiumin Huang, Jianghui Ji

Xiumin Huang and Jianghui Ji 2026 The Astrophysical Journal Supplement Series 286 .

  • Provider: AAS Journals

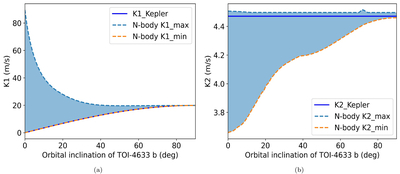

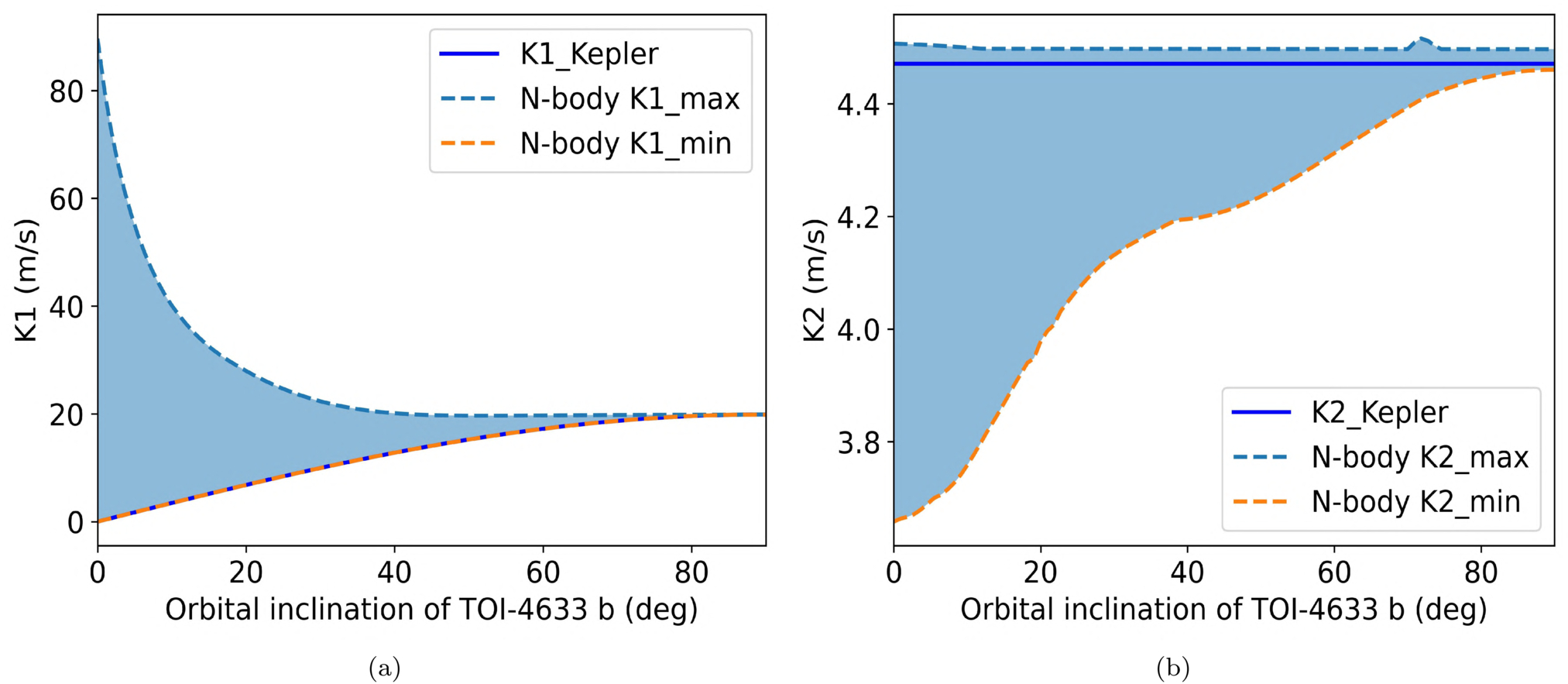

Caption: Figure 5.

The RV semi-amplitude K induced by planets TOI-4633 b and TOI-4633c under the perturbation of a stellar companion. Selected as the most extreme case of orbital structures, in panel (a), the maximum deviation between the Keplerian model and the N-body model ΔKb = 90 m s−1 when ib = 0°, in panel (b), the maximum deviation between the Keplerian model and the N-body model ΔKc = 0.75 m s−1 when ib = 0°.
