ULTIMATE Deblending. I. A 50-band Ultraviolet to Mid-infrared Photometric Catalog Combining Space- and Ground-based Data in the JWST/PRIMER Survey

Authors: Hanwen Sun, Tao Wang, Ke Xu, David Elbaz, Emiliano Merlin, Cheng Cheng, Emanuele Daddi, Shuowen Jin, Wei-hao Wang, Longyue Chen, Adriano Fontana, Zhen-Kai Gao, Jiasheng Huang, Benjamin Magnelli, Valentina Sangalli, Yijun Wang, Tiancheng Yang, Yuheng Zhang, Luwenjia Zhou

Hanwen Sun et al 2026 The Astrophysical Journal Supplement Series 285 .

Provider: AAS Journals

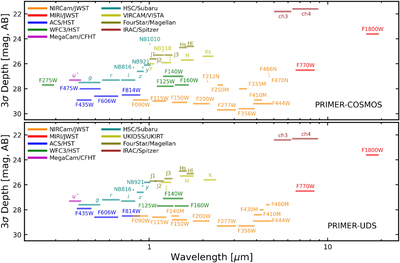

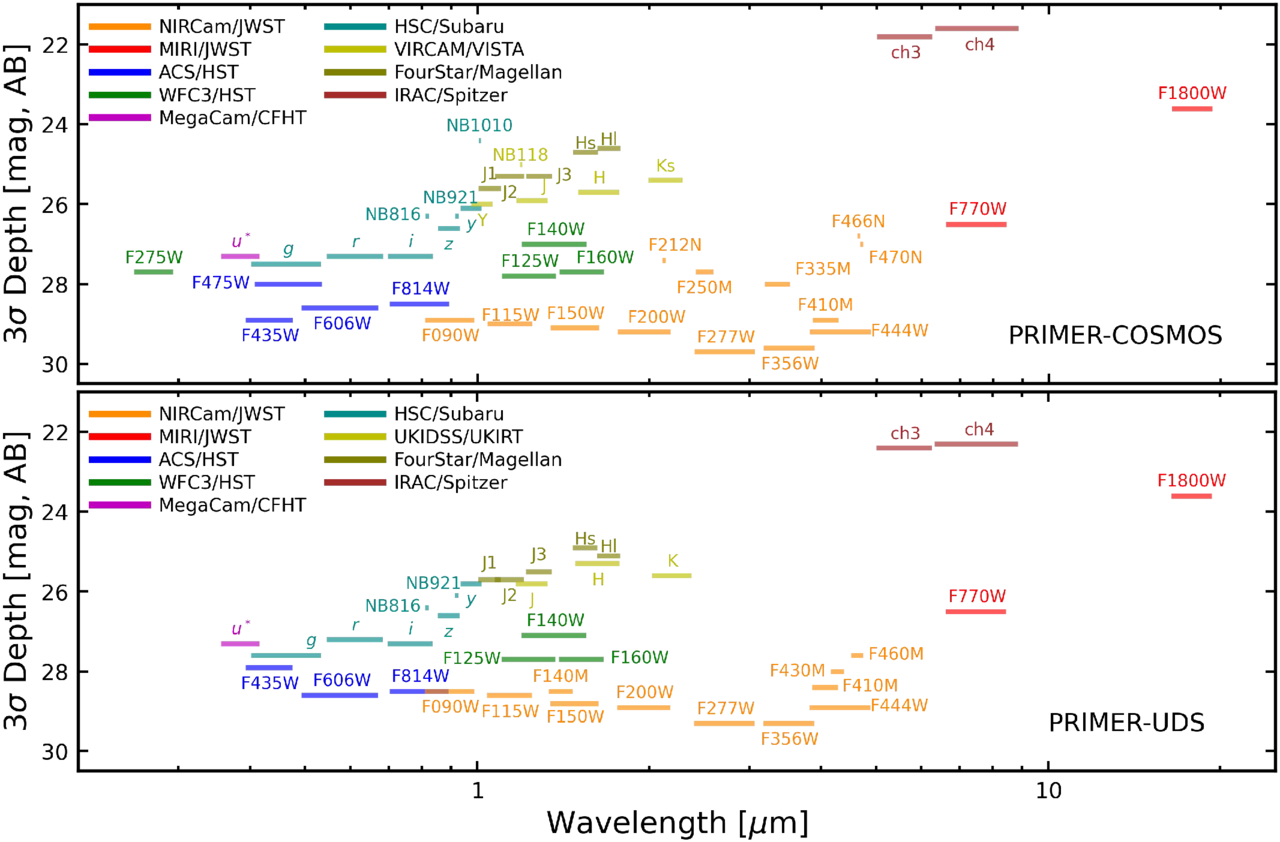

Caption: Figure 2.

The 3σ depth and wavelength range of the multiband data used by PRIMER-COSMOS (upper panel) and PRIMER-UDS (lower panel). All depths of point sources are measured using empty circular apertures and have been corrected to consider aperture losses. We use the apertures with the highest sensitivity (among 0﹩\mathop{.}\limits^{^{\prime\prime} }﹩2, 0﹩\mathop{.}\limits^{^{\prime\prime} }﹩5, and Kron apertures) for the JWST and HST data, and apertures with d = 3.5 × FWHM_PSF for the other low-resolution data.
