Application of a Grid-constrained U-shaped Neural Operator in Real-time Solar Corona Magnetic Field Extrapolation

  • Authors: Hao Yang, Pingbing Zuo, Zhenhua Liu, Peng Zou, Chaowei Jiang, Zhengyang Zou, Yanshi Huang, Yi Wang, Kun Zhang, Ruize Zhang

Hao Yang et al 2026 The Astrophysical Journal Supplement Series 283 .

  • Provider: AAS Journals

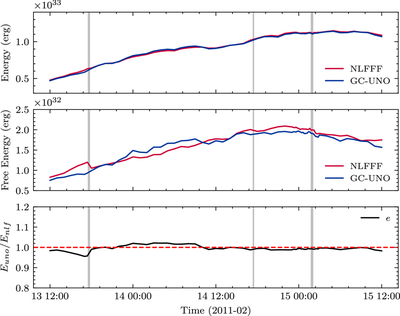

Caption: Figure 4.

Comparison of magnetic energy between GC-UNO and NLFFF in AR 11158. The time range spans from 2011 February 13 12:00:00 UT to 2011 February 15 12:00:00 UT. The top panel shows the total magnetic energy, the middle panel displays the free magnetic energy, and the bottom panel presents the energy ratio between GC-UNO and NLFFF. Three flare events are marked by gray-shaded bars.
