Hemispheric Asymmetry of Solar Active Regions Arises from a Nested Population

  • Authors: A. A. Norton

A. A. Norton 2026 The Astrophysical Journal Letters 1009 .

  • Provider: AAS Journals

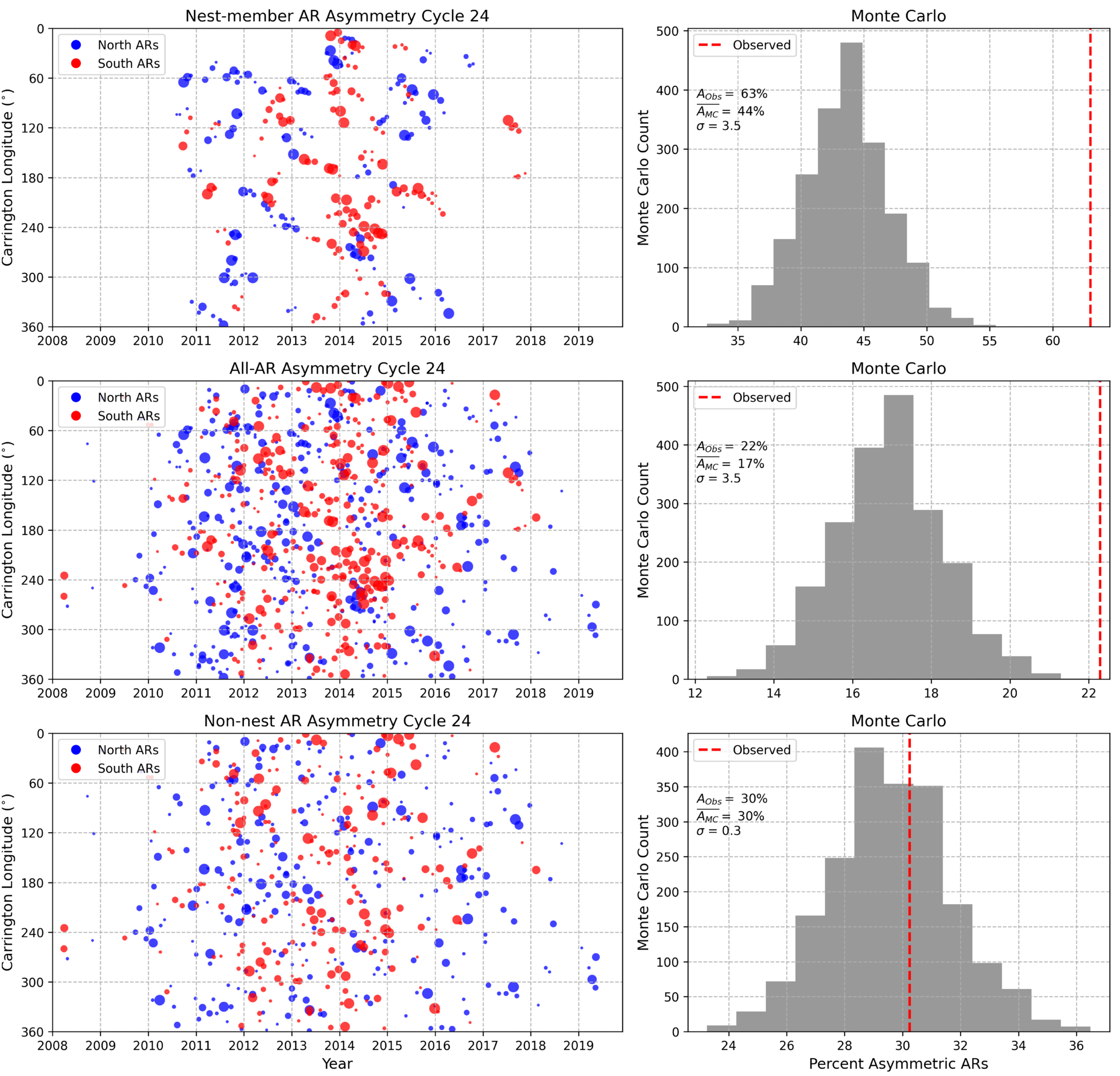

Caption: Figure 3.

North–south hemispheric asymmetry of Solar Cycle 24 AR emergence in longitude–time coordinates (left) and histogram of asymmetry in the Monte Carlo realizations (right) compared to observed asymmetry. North (south) ARs are shown in blue (red) for the nest-member ARs (top), full AR population (middle), and the remaining non-nest population (bottom panels). AR locations are dilated by ±10° in longitude and ±1 Carrington rotation in time when determining cross-equatorial overlap (dilation not shown). ARs whose dilated regions intersect with ARs in the opposite hemisphere are classified as symmetric, while those without counterparts are classified as asymmetric. The observed asymmetry (AObs, dashed red line) is compared with Monte Carlo realizations using randomized longitudes and temporal shifts of up to ±2 Carrington rotations (right panel). Significant asymmetry is present in the nest-member and all-AR populations (3.5σ), while the non-nest population is statistically consistent with random symmetry in the Monte Carlo realizations (0.3σ).
